Description

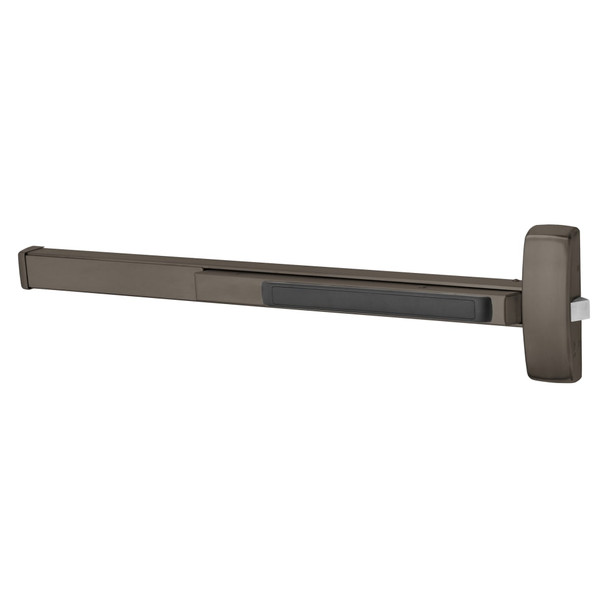

The Sargent 80 Series rim exit device delivers Grade 1 security for wood and metal doors in high-traffic facilities. Engineered for single and double door applications, this push-to-exit bar provides quiet operation, single-point latching, and maintenance-free durability. Ideal for buildings requiring reliable panic hardware that exceeds ANSI/BHMA standards.
This rim device fits doors 1-3/4 inches thick; thicker doors require a 31-prefix order. Rail options accommodate door widths from 24 to 48 inches with no cutting required at standard sizes. As an authorized Sargent dealer, E.D. Locks provides expert sizing guidance and compatibility support. Contact sales@edlocks.com or 1-877-207-6067 for help selecting the correct rail and finish for your application.
Specifications
- Brand: Sargent
- Series: 80
- Device Type: Rim Exit Device
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Options: 24-32 inch (E Rail), 33-36 inch (F Rail), 37-42 inch (J Rail), 43-48 inch (G Rail)
- Applications: Single door, double door with mullions
- Latch Configuration: Single point latching
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Door Types: Wood or metal
