Description

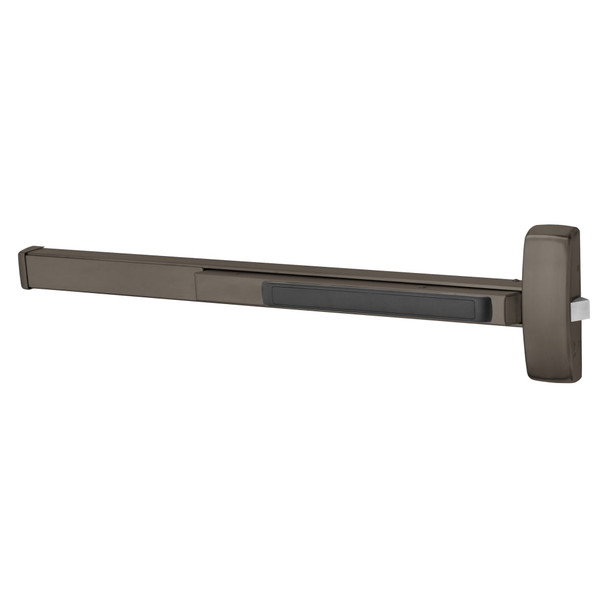

The Sargent 80 Series Rim Exit Device is a heavy-duty panic hardware solution designed for commercial facilities requiring Grade 1 security and reliability. This single-point latching device suits wood or metal doors 1.75 inches thick and handles both single and double-door applications with mullions. It solves the need for durable, low-maintenance egress hardware that exceeds ANSI/BHMA standards.
Installation accommodates door widths of 24 to 42 inches with the J Rail configuration, with no cutting required for 42-inch doors. The device is UL Fire and Panic listed and ANSI A156.3 Grade 1 certified. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for sizing guidance, keying options, and installation support from an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 125556-8815J 10B
- Type: Rim Exit Device, 80 Series
- Compatible Door Thickness: 1.75 inches (44mm)
- Compatible Door Widths (J Rail): 37 to 42 inches (94 to 107cm)
- No Cut Required: 42-inch doors
- Applications: Single door, double door with mullions
- Latching: Single-point
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Features: Modular construction, minimal moving parts, quiet operation, maintenance-free
