Description

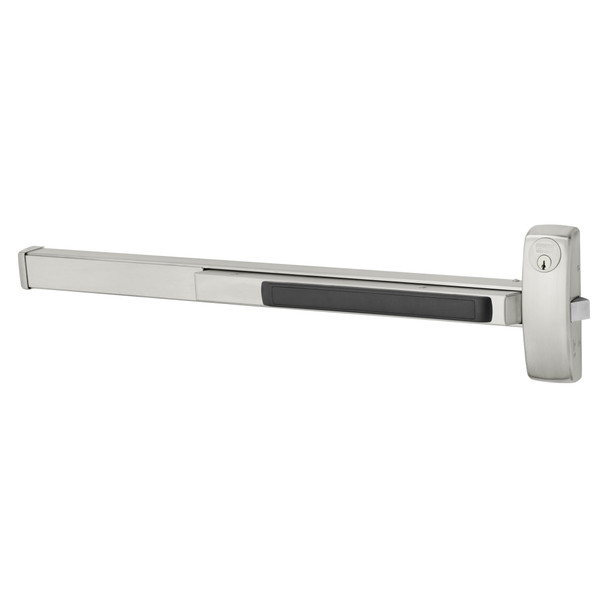

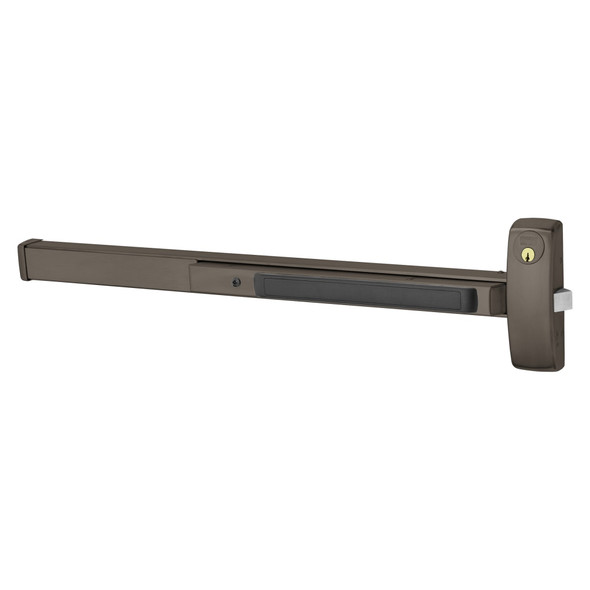

The Sargent 80 Series rim exit device is a Grade 1 panic bar engineered for wood and metal doors requiring institutional-strength security and durability. Ideal for commercial facilities, schools, hospitals, and multi-tenant buildings, this single-point latching device delivers reliable emergency egress while exceeding ANSI/BHMA standards and UL fire-rated performance for life-safety compliance.
This right-hand reverse (RHR) model fits 32-inch doors without cutting and accommodates 1-3/4-inch thick doors; thicker doors available with 31-prefix ordering. The modular design minimizes maintenance and supports single or double-door applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, configuration options (delayed egress, alarmed, electric latch retraction), and installation guidance.
Specifications
- Door Type: Wood or metal, 1-3/4 inch (44mm) thick
- Door Width: 24 inch to 32 inch (61cm to 81cm) with G Rail; no cutting required for 32 inch
- Configuration: Rim mount, right-hand reverse (RHR)
- Latching: Single-point
- Applications: Single and double doors with mullions
- Standards: ANSI A156.3 Grade 1, UL fire and panic listed
- Operation: Quiet, solid security, minimal maintenance
