Description

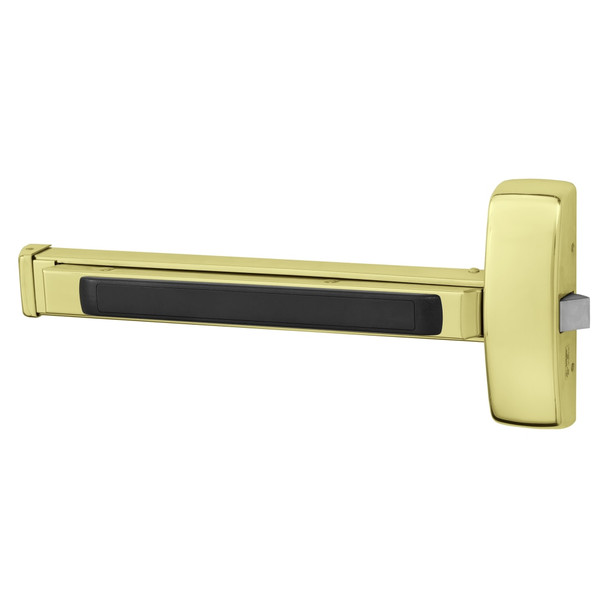

The Sargent 80 Series Rim Exit Device is a heavy-duty panic bar designed for wood and metal doors requiring ANSI/BHMA Grade 1 security and reliability. Ideal for commercial buildings, schools, hospitals, and facilities where code-compliant emergency egress and lasting durability are critical, this single-point latching device combines modular construction with minimal moving parts for maintenance-free operation.
This rim exit device fits standard 1-3/4 inch thick doors (wood or metal) and accommodates door widths from 24 to 48 inches with E, F, J, or G rail options. Installation is straightforward on both single and double doors with mullions. As an authorized Sargent dealer, E.D. Locks provides expert guidance on rail selection, keying, and compliance. Contact sales@edlocks.com or call 1-877-207-6067 for sizing assistance and to confirm your door configuration before ordering.
Specifications
- Brand: Sargent
- Model: 125556-8843E 3 (80 Series Rim)
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Range: 24 to 48 inches (61cm to 122cm) depending on rail type
- Rail Options: E (24-32 inch), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Latching Type: Single-point rim latch
- Applications: Single door and double door with mullions
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Door Types: Wood or metal
- Features: Quiet operation, modular construction, maintenance-free
