Description

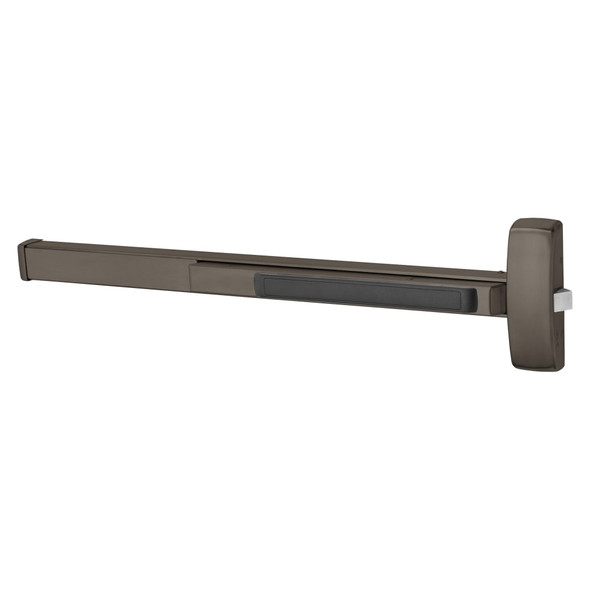

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution for wood and metal doors in commercial buildings. Designed for single and double door applications with mullions, it delivers single-point latching, quiet operation, and durable security that exceeds ANSI/BHMA requirements. Ideal for facilities prioritizing long-term reliability and code compliance.
This device fits 1-3/4" standard doors; thicker doors require a 31-prefix order. Available rail options accommodate door widths from 24" to 48" with no cutting needed at standard sizes (32", 36", 42", 48"). For compatibility confirmation, keying options, or custom applications like delayed egress or electric latch retraction, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 1256-8810J 10B
- Type: Rim Exit Device
- Door Thickness: 1-3/4" (44mm) standard; specify for thicker
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Door Types: Wood or metal
- Applications: Single and double door with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Single-point latching, quiet operation, modular construction
