Description

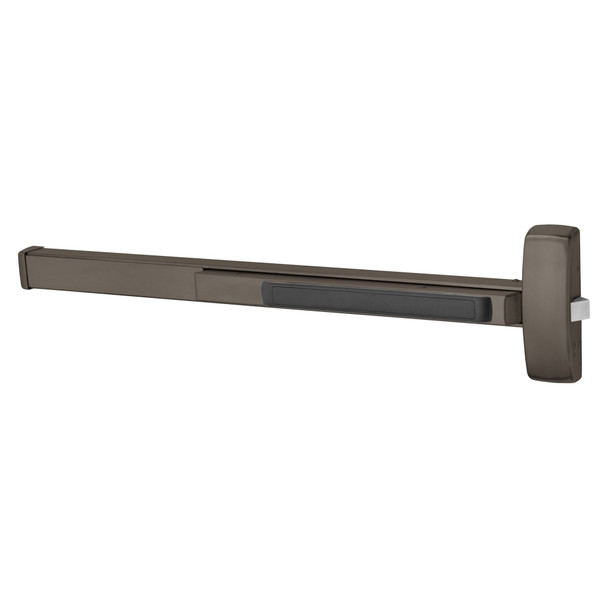

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for commercial facilities requiring reliable emergency egress. Designed for wood or metal doors 1 3/4" thick, this single-point latching device handles single and double door applications with quiet operation and maintenance-free performance that exceeds ANSI/BHMA standards.
Compatible with E, F, J, and G rail configurations for door widths 24" to 48", this device installs on standard doors without cutting for specified widths. UL Fire and Panic listed with options for delayed egress, alarmed exit, and electric latch retraction. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for compatibility verification and installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1 3/4" (44mm) standard; over 1 3/4" order with 31- prefix
- E Rail: 24" to 32" (no cutting required for 32")
- F Rail: 33" to 36" (no cutting required for 36")
- J Rail: 37" to 42" (no cutting required for 42")
- G Rail: 43" to 48" (no cutting required for 48")
- Latch Type: Single point rim latching
- Applications: Single door, double door with mullions
- Certifications: ANSI A156.3, UL Fire and Panic listed
- Construction: Modular with few moving parts
