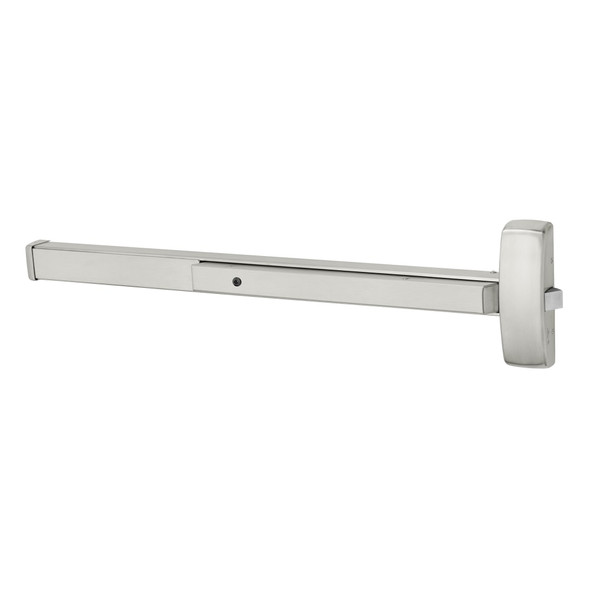

The Sargent 80 Series rim exit device is a Grade 1 certified panic bar for wood or metal doors 1 3/4 inches thick. Designed for commercial facilities requiring durable, low-maintenance security, this single-point latching device delivers reliable egress control and meets ANSI/BHMA standards for cycle strength and durability across its lifespan.
This rim configuration fits door widths 24 to 32 inches with no cutting required for 32-inch doors. The 80 Series supports single and double door applications with mullions and includes options for delayed egress, alarmed exit, and electric latch retraction. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert installation guidance.
Specifications
- Series: Sargent 80 Series
- Model: 5556-8846G 32D
- Configuration: Rim Exit Device
- Door Thickness: 1 3/4 inches (44mm)
- Door Width Range: 24 to 32 inches (61cm to 81cm)
- Rail Type: E Rail
- Latching: Single Point
- Door Types: Wood or Metal
- ANSI/BHMA Grade: Grade 1
- Standards: ANSI A156.3, UL Fire and Panic Listed
- Features: Quiet operation, modular construction, few moving parts
