Description

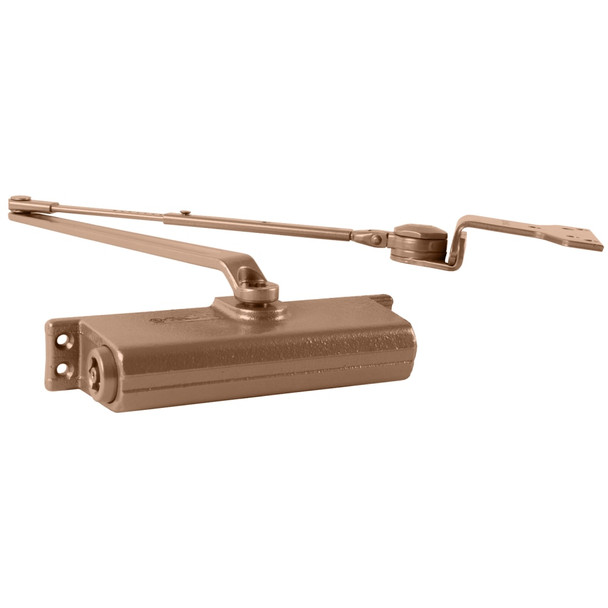

The LCN 1261-H 691 is a light to medium duty Grade 1 cast iron door closer built for commercial applications. Designed for interior doors up to 4'6" and exterior doors to 3'6", this non-handed closer solves the need for reliable, adjustable door control in high-traffic facilities. Its adjustable spring sizes 1-5 accommodate various door weights and applications.
The 1261-H 691 mounts to the standard commercial footprint (3/4" x 9-1/16") on the hinge side or top jamb, and works on right or left swinging doors. It ships with a regular arm, shaft cover, and hardware. ADA compliant and available in standard or custom powder coat finishes. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for installation guidance, finish options, and expert recommendations.
Specifications
- Brand: LCN
- Model: 1261-H 691
- Series: 1260
- Duty Rating: Light to Medium Duty, Grade 1
- Material: Cast Iron
- Spring Sizes: Adjustable 1-5
- Piston Diameter: 1-3/8 inches
- Pinion Journal: 5/8 inch diameter, single heat treated
- Interior Door Range: Up to 4'6"
- Exterior Door Range: Up to 3'6"
- Mounting Pattern: 3/4" x 9-1/16"
- Mounting Locations: Hinge side or top jamb
- Handed: Non-handed (right or left swing)
- ADA Compliant: Yes
- Included: Regular arm, shaft cover, self-reaming and tapping screws
- Optional Features: Quick Fix bracket kit, SRI primer, Slim Line cover, custom powder coat finish
