Description

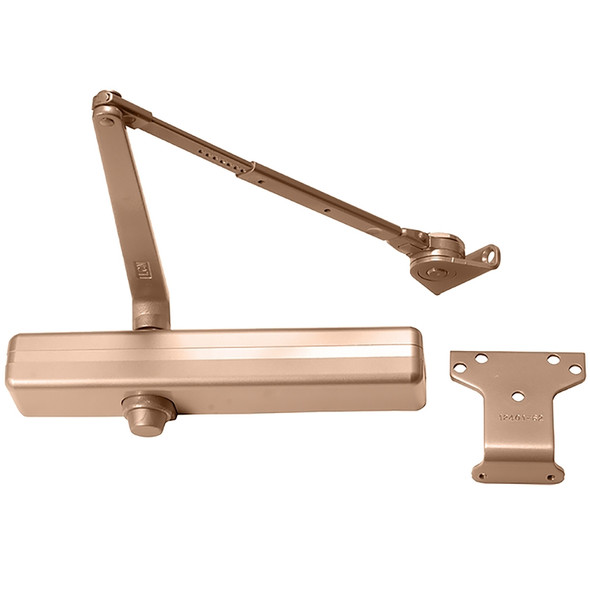

The LCN 1461-HCUSH is a Grade 1 surface-mounted door closer designed for commercial and institutional applications on both interior and exterior doors. Built with a cast iron body, full-complement bearing, and adjustable spring strength (sizes 1-6), it solves the need for reliable, durable door control that meets ADA requirements and handles high-traffic environments.
This closer mounts on the hinge side or top jamb and works on right or left swinging doors up to 5 feet (interior) or 4 feet (exterior). It features concealed adjustment valves, independent backcheck and closing controls, and Cush-N-Stop function to prevent damage. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 1461-HCUSH
- Grade: 1
- Finish: Light Bronze
- Body Material: Cast iron
- Piston Diameter: 1-1/4 inch
- Pinion Journal Diameter: 3/4 inch
- Spring Range: Adjustable sizes 1-6
- Interior Door Height: Up to 5 feet 0 inches
- Exterior Door Height: Up to 4 feet 0 inches
- Mount Options: Hinge side, top jamb, parallel arm
- Handedness: Universal, fully reversible, non-handed
- Cycle Tested: 2,000,000 cycles
- Special Features: Cush-N-Stop, concealed adjusters, all-weather fluid, optional SRI primer
