Description

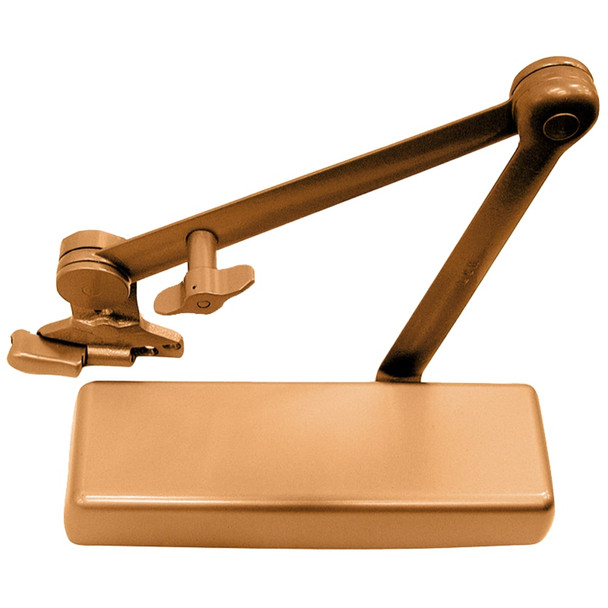

The LCN 4040XP is a heavy-duty institutional surface closer engineered for high-traffic doors in demanding environments. Its 44% increased bearing load capacity, 3/4" pinion journal, and V-shield seal deliver superior durability and 20% longer seal life. Non-handed design works on either right or left swinging doors, making it ideal for schools, hospitals, and commercial facilities.
This closer installs on hinge side, top jamb, or parallel arm positions and adjusts for interior doors to 5'0" and exterior doors to 4'0" without sizing. UL and cUL listed under ANSI A156.4 grade one. As an authorized LCN dealer, E.D. Locks provides expert sizing, finish options (powder coat, plating, SRI primer for corrosive environments), and installation support. Contact sales@edlocks.com or 1-877-207-6067 for custom specifications.
Specifications
- Brand: LCN
- Model: 4040XP-SHCUSH
- Finish: Light Bronze (LTBRZ)
- Type: Non-Handed Surface Closer
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Mount Positions: Hinge side, top jamb, parallel arm
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Adjustability: Non-sized cylinder, field adjustable
- Accessories: Compatible with all 4040 accessories
- Optional Finishes: Custom powder coat, plated finish, SRI primer
