Description

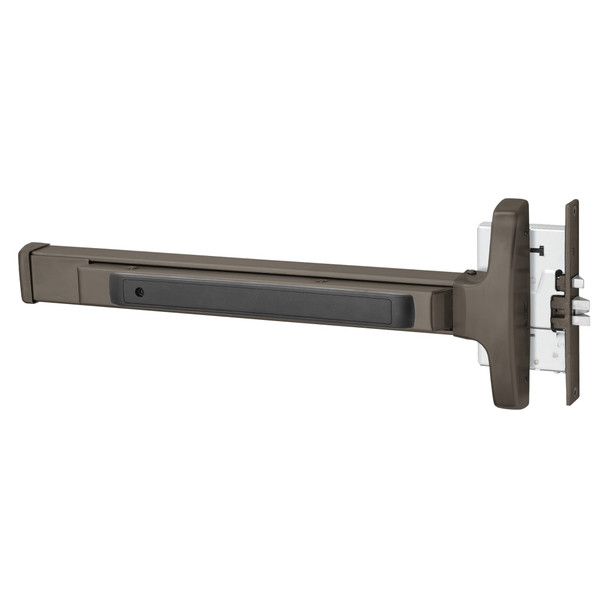

The Sargent 80 Series exit device is a heavy-duty panic bar designed for facilities requiring durable, maintenance-free security. Exceeding ANSI/BHMA Grade 1 standards, it features modular construction with minimal moving parts, ideal for wood or metal doors 1 3/4" thick and 4 1/2" minimum stile width. This RHR (right-hand reverse) model suits buildings prioritizing long-term reliability and code compliance.
Installation fits E, F, J, or G rails for door widths 24" to 48" with minimal cutting required. For thicker doors or specialized needs like delayed egress or electric latch retraction, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility and options tailored to your facility.
Specifications
- Brand: Sargent
- Model: 80 Series 1943-8343E RHR 10B
- Configuration: Right-Hand Reverse
- Door Thickness: 1 3/4" (44mm)
- Minimum Stile Width: 4 1/2" (114mm)
- Rail Options: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Door Types: Wood or Metal
- Standards: Exceeds ANSI/BHMA Grade 1
