Description

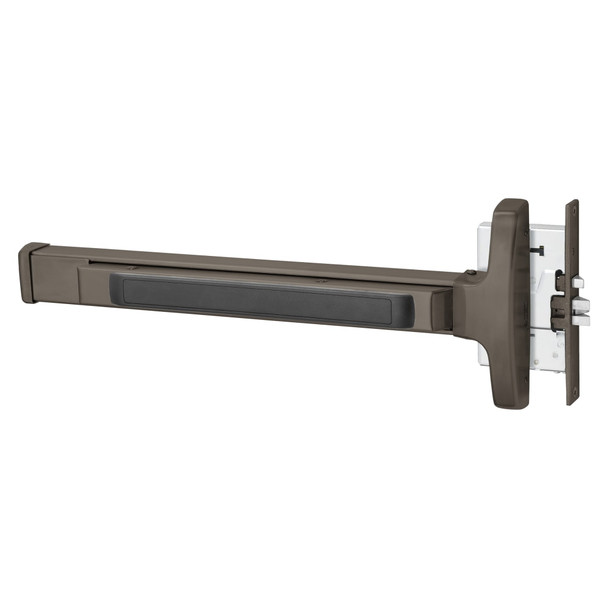

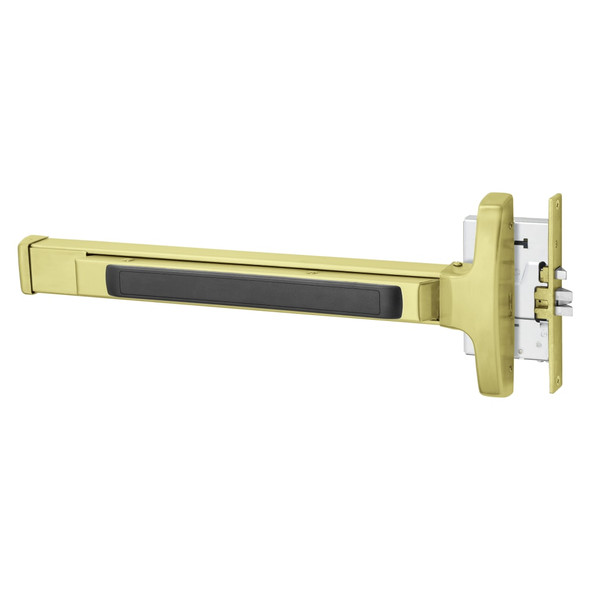

The Sargent 80 Series exit device is a heavy-duty panic bar designed for wood and metal doors in commercial and institutional facilities. It delivers Grade 1 strength and durability for high-traffic environments, with modular construction that minimizes maintenance while maximizing security and code compliance for building life.
This right-hand reverse (RHR) model fits 1-3/4" standard doors with stiles 4-1/2" or wider. E Rail configuration accommodates 24" to 32" door widths without cutting. As an authorized Sargent dealer, E.D. Locks provides expert selection, sizing guidance, and installation support. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility verification and fast delivery.
Specifications
- Brand: Sargent
- Model: 80 Series 194356-8343E RHR 10B
- Configuration: Rim, right-hand reverse
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61-81 cm)
- Door Thickness: 1-3/4" (44 mm)
- Minimum Stile Width: 4-1/2" (114 mm)
- Grade: ANSI/BHMA Grade 1
- Door Types: Wood or metal
- Features: Modular construction, maintenance-free, options for delayed egress, alarm, electric latch retraction
