Description

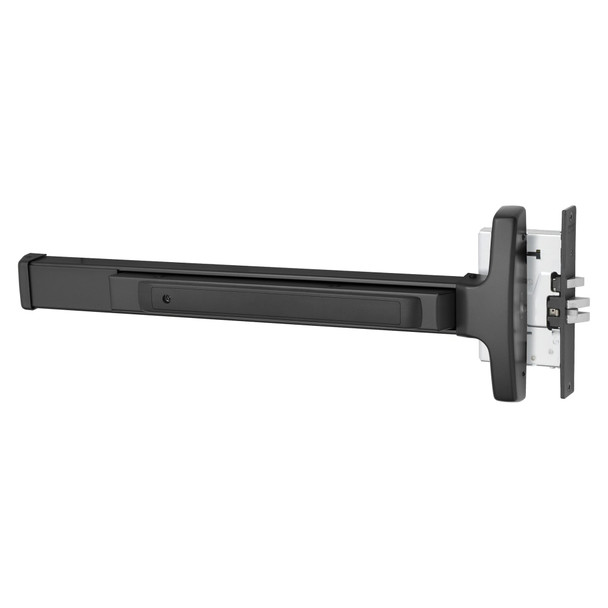

The Sargent 80 Series exit device delivers Grade 1 security and durability for wood or metal doors in high-traffic facilities. This right-hand reverse rim-mounted device suits standard 1.75-inch doors with minimal stile width of 4.5 inches. Its modular construction and few moving parts mean minimal maintenance while exceeding ANSI/BHMA strength and cycle requirements for institutional, commercial, and emergency egress applications.
Available in multiple rail configurations (E, F, J, G) to fit door widths from 24 to 48 inches with no cutting required at standard sizes. Optional delayed egress, alarmed exit, and electric latch retraction features customize the device for unique facility needs. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing guidance and authorized dealer support.
Specifications
- Brand: Sargent
- Model: 1943-8343E RHR BSP
- Configuration: Rim, Right-Hand Reverse
- Door Types: Wood or metal, 1.75 inches (44mm) thick
- Minimum Stile Width: 4.5 inches (114mm)
- E Rail: 24-32 inches (61-81cm)
- F Rail: 33-36 inches (84-91cm)
- J Rail: 37-42 inches (94-107cm)
- G Rail: 43-48 inches (110-122cm)
- Standard: ANSI/BHMA Grade 1
