Description

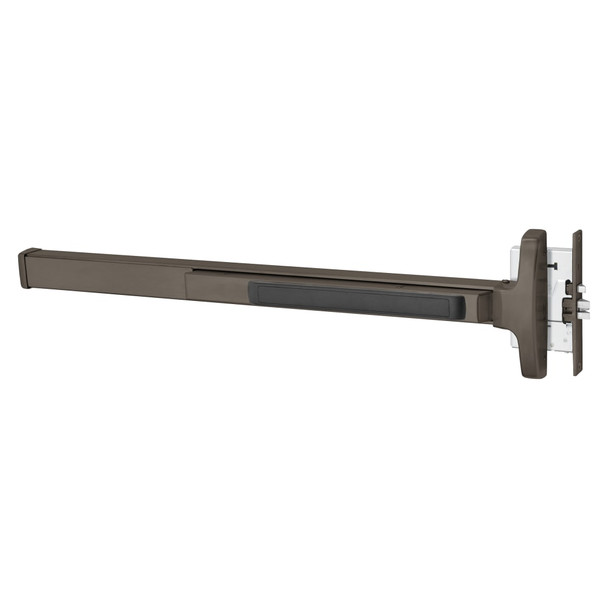

The Sargent 80 Series exit device is a heavy-duty panic bar built for commercial and institutional facilities requiring uncompromising security and reliability. Ideal for wood or metal doors, this Grade 1 certified device features rim configuration with modular construction, minimal maintenance needs, and options for delayed egress, alarmed exit, and electric latch retraction to meet diverse building codes and life safety requirements.
This left-hand reverse (LHR) model fits doors 1-3/4 inches thick with J-rail configuration for door widths 37 to 42 inches (no cutting required for 42-inch doors). Stile width must be at least 4.5 inches. As an authorized Sargent dealer, E.D. Locks provides expert sizing guidance, installation support, and access to the full 80 Series range. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility confirmation.
Specifications
- Brand: Sargent
- Model: 194356-8343J LHR 10B
- Configuration: Rim, Left-Hand Reverse (LHR)
- Rail Type: J Rail
- Door Width Range: 37 to 42 inches (94cm to 107cm)
- Door Thickness: 1-3/4 inches (44mm)
- Minimum Stile Width: 4.5 inches (114mm)
- Grade: ANSI/BHMA Grade 1
- Door Types: Wood or metal
