Description

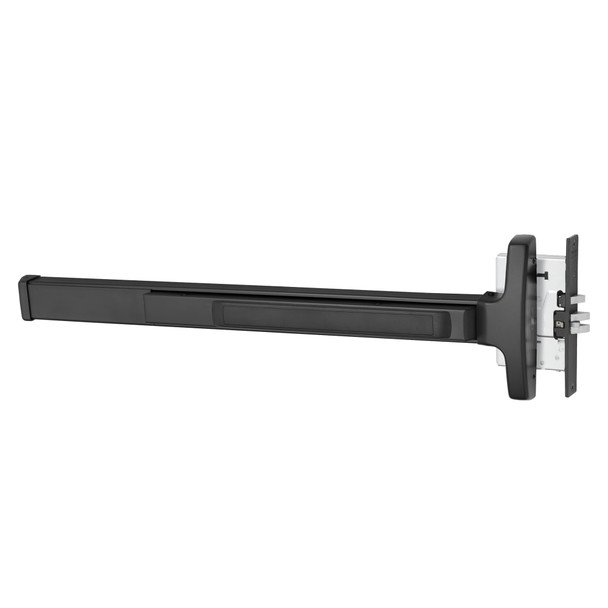

The Sargent 80 Series exit device delivers Grade 1 security and durability for wood or metal doors in commercial facilities. This left-hand reverse (LHR) model with surface vertical rod configuration suits doors 37-42 inches wide, solving the need for reliable, code-compliant panic hardware that withstands decades of heavy use without maintenance.
Installation fits standard 1-3/4 inch thick doors with 4-1/2 inch minimum stile width; J Rail requires no cutting for 42 inch doors. Modular construction and optional delayed egress or electric latch retraction enhance flexibility. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, configuration, and ADA compliance to ensure the right fit for your building.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 194356-8343J
- Configuration: LHR (Left-Hand Reverse) Surface Vertical Rod
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Range: 37-42 inches (94-107cm)
- Door Width Without Cutting: 42 inches
- Minimum Stile Width: 4-1/2 inches (114mm)
- Door Types: Wood or Metal
- Grade: ANSI/BHMA Grade 1
- Construction: Modular with few moving parts
