Description

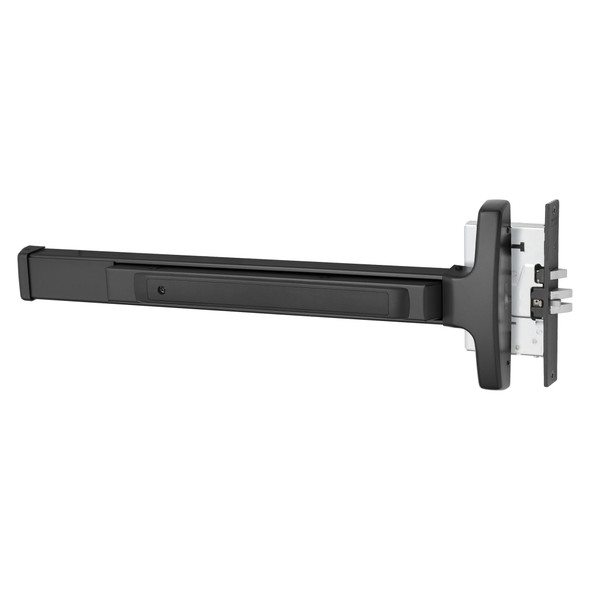

The Sargent 80 Series exit device is a heavy-duty panic hardware solution for commercial facilities requiring Grade 1 security and reliability. Ideal for wood or metal doors 1-3/4" thick, this left-hand reverse (LHR) rim model exceeds ANSI/BHMA standards with modular construction, minimal moving parts, and maintenance-free operation throughout the building's life.
Available in E, F, J, and G rail configurations for doors 24" to 48" wide, this exit device supports delayed egress, alarmed, and electric latch retraction options for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert sizing guidance and technical support. Contact sales@edlocks.com or call 1-877-207-6067 for installation assistance and to confirm compatibility with your specific door assembly.
Specifications
- Brand: Sargent
- Model: 80 Series 194356-8343E
- Configuration: Left-Hand Reverse (LHR) Rim, Bottom Strike Plate (BSP)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Standards: Exceeds ANSI/BHMA Grade 1
- Door Types: Wood or Metal
