Description

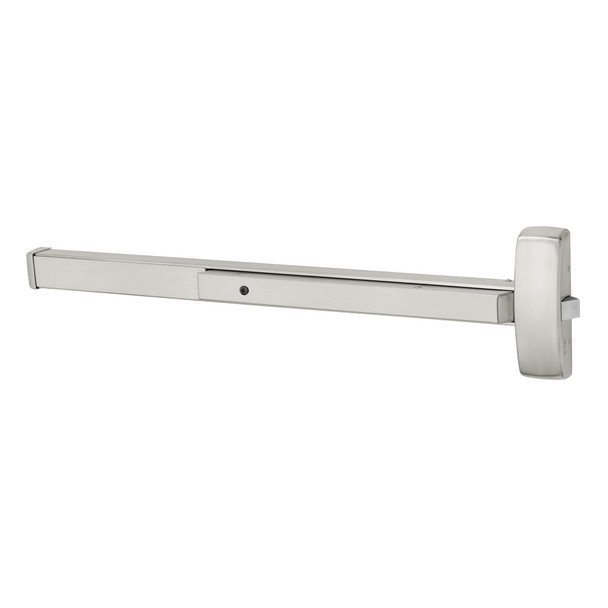

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution for wood and metal doors requiring reliable emergency egress. Ideal for commercial facilities, schools, and institutional buildings, this single-point latching device provides durable security that meets ANSI/BHMA Grade 1 standards while enabling quick, safe emergency exits. Modular design and minimal moving parts ensure maintenance-free operation throughout the building's life.
This 32D model fits doors 24-32 inches wide without cutting and accommodates 1-3/4 inch thick doors. The device is UL Fire and Panic listed for code compliance and pairs with wood or metal frames. Contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 for help selecting the right rail configuration, keying options, and delayed egress or electric latch retraction upgrades for your application.
Specifications
- Brand: Sargent
- Series: 80 Series
- Device Type: Rim Exit Device
- Model: 194356-8843F 32D
- Door Thickness: 1-3/4 inch (44mm)
- Door Width: 24-32 inches (61-81cm)
- Rail: E Rail, no cutting required for 32 inch doors
- Applications: Single and double door with mullions
- Latch: Single point rim latching
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Material: Suitable for wood and metal doors
