Description

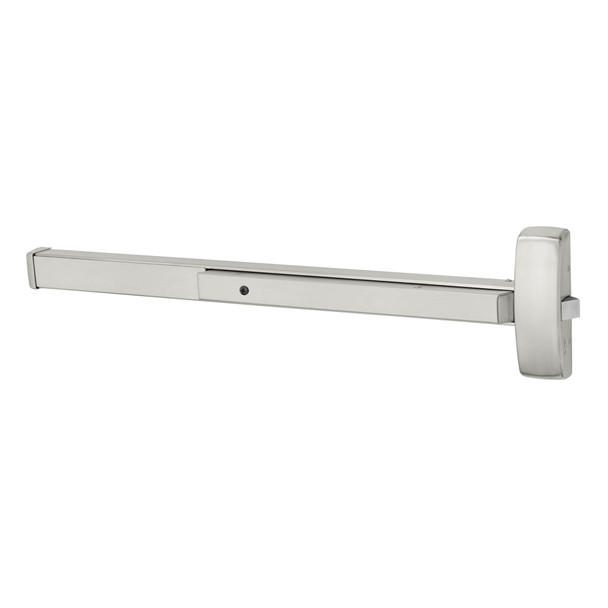

The Sargent 80 Series rim exit device is a Grade 1 panic bar built for wood and metal doors requiring durable, code-compliant egress hardware. Ideal for commercial facilities, educational institutions, and high-traffic environments, this single-point latching device provides reliable security while meeting ANSI/BHMA requirements and UL Fire and Panic listings.
This rim configuration fits 1-3/4 inch thick doors and is compatible with E rail applications on 24 to 32 inch door widths, with no cutting required for 32 inch doors. The 80 Series features modular construction with minimal moving parts for easy maintenance. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for installation guidance, keying options, and delayed egress or electric latch retraction upgrades.
Specifications
- Model: 194356-8843G 32D
- Brand: Sargent
- Type: Rim Exit Device
- Series: 80 Series
- Configuration: Rim
- Rail Type: E Rail
- Compatible Door Width: 24 to 32 inches
- Compatible Door Thickness: 1-3/4 inches
- Door Types: Wood or Metal
- Latching: Single Point
- Applications: Single and Double Door with Mullions
- Standard: ANSI A156.3 Grade 1
- Certifications: UL Fire and Panic Listed
