Description

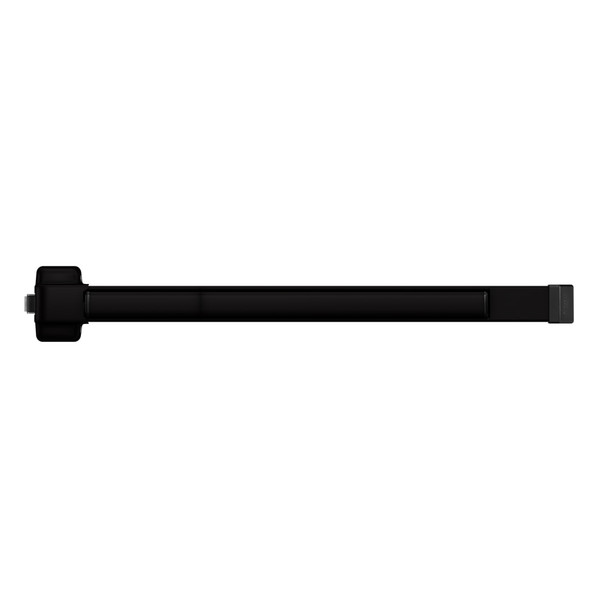

The Von Duprin 22K-F 3 695 is a UL-listed panic exit device designed for single and double doors with or without mullions. Built to ANSI A156.3, 2008 Grade 1 standards, this non-handed rim exit device fits door stiles as narrow as 3 13/16" and covers standard hollow metal cutouts, making it ideal for commercial buildings requiring reliable emergency egress hardware.
Available in 3' and 4' lengths with multiple function options (EO, DT, NL, TP, K, L), the 22K-F 3 695 features a deadlocking 3/4" throw latch bolt and integrates with optional electric monitoring, alarm, and mechanical accessories. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on configuration, installation, and keying. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI A156.3, 2008 Grade 1
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Centerline from finished floor: 39 13/16" (1011 mm) or 39 11/16" (1008 mm) with mullion
- Minimum door stile width: 3 13/16" (97 mm)
- Center case dimensions: 4 1/4" x 1 3/8" x 2 3/8"
- Mechanism case dimensions: 2" x 3 3/4"
- Push bar neutral projection: 3 3/4" (95 mm)
- Push bar depressed projection: 3" (76 mm)
- Latch bolt: Deadlocking, 3/4" (19 mm) throw
- Dogging: Hex key standard, less dogging option available
- Functions: EO, DT, NL, TP, K, L
- Electric options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, ALK alarm exit kit, CON Allegion Connect
- Mechanical options: GBK glass bead kit, AX accessible device
- Strike: 299 Dull Black
