Description

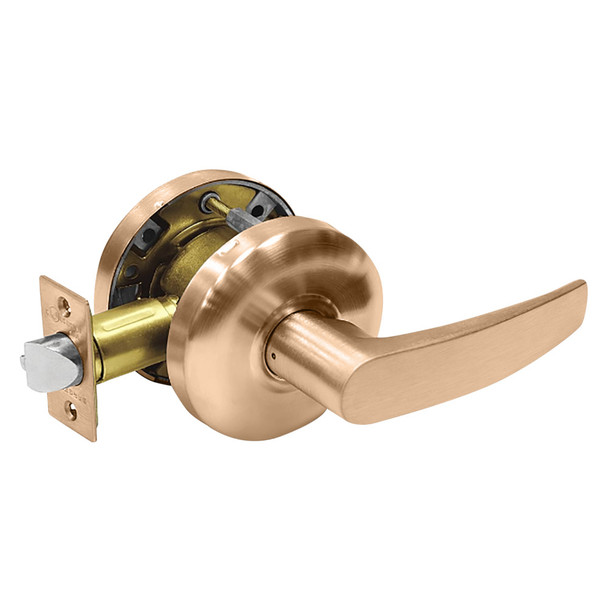

The Sargent 6500 Series 28-65U15-3 is a standard-duty key-in-lever cylindrical lock meeting ANSI A156.2 Grade 2 requirements. Ideal for commercial and institutional doors, this universal-hand lock provides reliable keyed access control for standard 1-3/8" to 1-3/4" thick doors with a 2-3/4" backset.
This lock fits doors prepared to ANSI A115.2 (161) Modified specifications and works with the included 600 Curved Lip strike (brass or stainless steel standard). Includes two nickel silver keys with LA keyway and a brass, 6-pin cylinder. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for backset options, finish selection, and installation guidance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Latch Throw: 1/2" (13mm)
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Strike: 600 Curved Lip, brass or stainless steel standard
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Hand: Universal
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Standard: ANSI A156.2 Series 4000 Grade 2
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
