Description

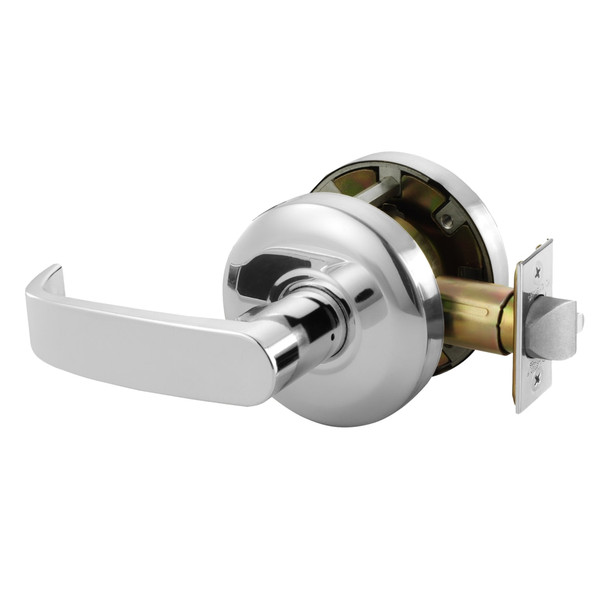

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock engineered for interior and passage doors in commercial and institutional settings. It meets ANSI A156.2 Series 4000 Grade 2 requirements and fits doors 1-3/8" to 1-3/4" thick with a universal, non-handed design that works on either side.
This lock is pre-configured with a 2-3/4" backset, brass 1/2" throw latch, 6-pin LA keyway cylinder, and includes two nickel silver keys. Pair with the 600 Curved Lip strike (brass or stainless steel standard). For compatibility confirmation, installation support, or custom backset options, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 28-65U15-3
- Standard: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Housing: Steel, zinc dichromate finish
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Hand: Universal, not handed
- Strike: 600 Curved Lip (brass or stainless steel standard)
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2"
