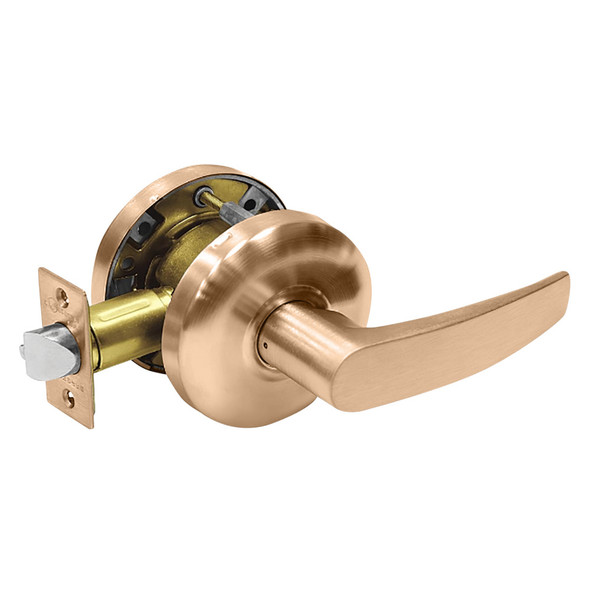

28-65U15-3 KB 10B

The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.

• For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
• Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
• Cylindrical Housing: Steel zinc dichromate finish
• Front: Wrought brass and stainless steel;
• 2-1/4" (57mm) x 1-1/8"(29mm)
• Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
• Hand: Universal, not handed
• Latch: Brass 1/2" (13mm) throw
• Keys: Two, nickel silver
• Cylinder: Brass, 6 pin, LA keyway standard
• Finishes : 3, 4, 10, 10B, 26, 26D
• (No Split Finish)
• Door Prep: ANSI A115.2 (161) Modified
• Minimum Stile: 4-1/2" (114mm)
