Description

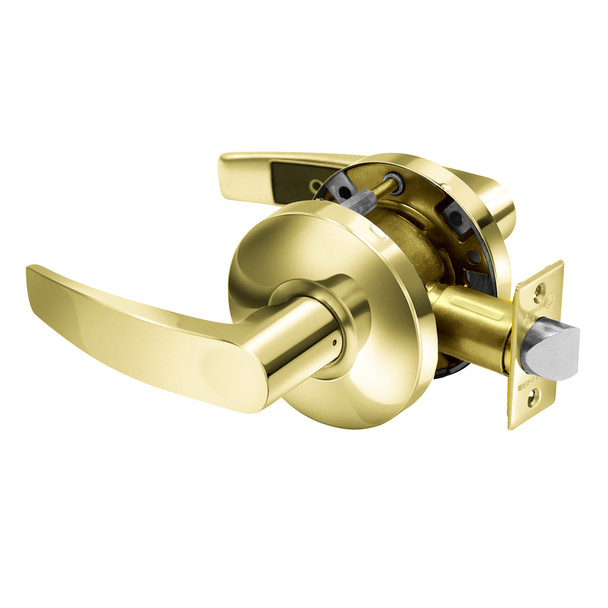

The Sargent 6500 series is a standard-duty key-in-lever lock engineered for interior and exterior commercial doors. It exceeds ANSI A156.2 Series 4000 Grade 2 requirements and suits facilities managing multiple access points where reliable, durable hardware is essential.
This lock fits doors 1-3/8" to 1-3/4" thick with a 2-3/4" standard backset. It features a universal hand design, brass latch with 1/2" throw, and includes two nickel silver keys. An authorized E.D. Locks dealer can confirm your specific backset, finish, and strike options. Contact our experts at sales@edlocks.com or 1-877-207-6067 for installation guidance and to verify compatibility with your door preparation.
Specifications
- Brand: Sargent
- Model: 28-65U15 KB 3
- Type: Key-In-Lever Lock, Cylindrical
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys Included: Two nickel silver
- Hand: Universal, not handed
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Standard: ANSI A156.2 Series 4000 Grade 2
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile Width: 4-1/2"
