Description

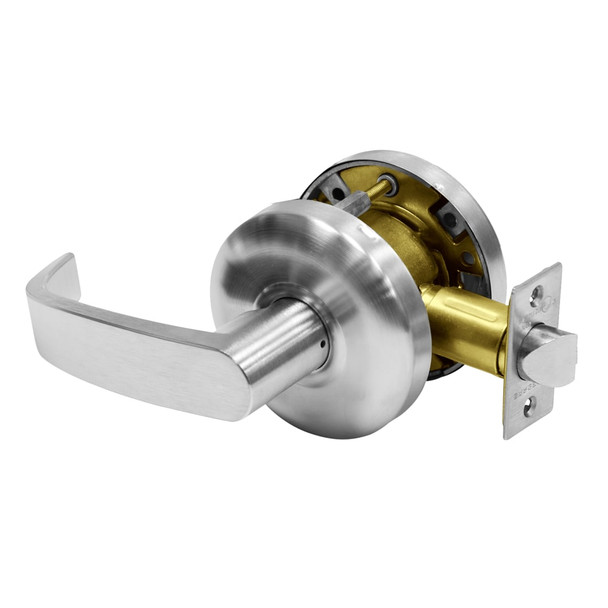

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock built to exceed ANSI A156.2 Grade 2 requirements. Ideal for commercial buildings, offices, and facilities needing reliable access control, it solves the need for durable, keyed entry hardware that meets industry security standards on interior and exterior doors.
Compatible with 1-3/8 inch to 1-3/4 inch thick doors using ANSI A115.2 (161) Modified preparation, this lock features a 2-3/4 inch standard backset, brass 6-pin LA cylinder with two nickel-silver keys, and universal hand installation. As an authorized Sargent dealer, E.D. Locks provides expert guidance on specification, keying options, and strike compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for detailed assistance.
Specifications
- Brand: Sargent
- Model: 28-65U15-3
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8 inch to 1-3/4 inch
- Backset: 2-3/4 inch standard (2-3/8 inch optional)
- Finish: 26D (Satin Chrome)
- Cylinder: Brass, 6-pin, LA keyway
- Latch: Brass, 1/2 inch throw
- Front Plate: Wrought brass and stainless steel, 2-1/4 inch x 1-1/8 inch
- Hand: Universal, not handed
- Keys: Two, nickel silver
- Strike Options: 600 Curved Lip (standard), 808 ANSI Curved Lip (28- prefix), 505 Full Lip (14- prefix)
- Minimum Stile: 4-1/2 inch
- Door Prep: ANSI A115.2 (161) Modified
