Description

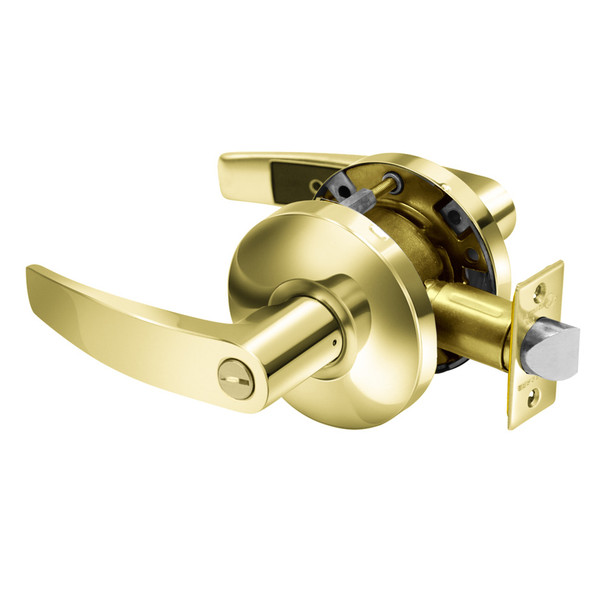

The Sargent 6500 Series is a standard-duty key-in-lever lock engineered for interior and exterior commercial doors. It exceeds ANSI A156.2 Series 4000 Grade 2 standards and accommodates door thicknesses from 1-3/8" to 1-3/4". Universal hand design simplifies installation across left and right-hand openings, making it ideal for multi-building facilities.
This lock ships with a 2-3/4" backset (2-3/8" optional), brass 6-pin cylinder with LA keyway, and two nickel silver keys. Sargent offers multiple strike options and finishes to match your security requirements. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for backset verification, finish selection, and professional keying assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" standard, 2-3/8" optional
- Cylinder: Brass, 6-pin, LA keyway
- Latch: Brass, 1/2" throw
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Hand: Universal
- Keys Included: Two nickel silver
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Strike Options: 600 Curved Lip (brass/stainless standard), 808 ANSI Curved Lip, 505 Full Lip
- ANSI Standard: A156.2 Series 4000 Grade 2
- Minimum Stile: 4-1/2"
- Door Prep: ANSI A115.2 (161) Modified
