Description

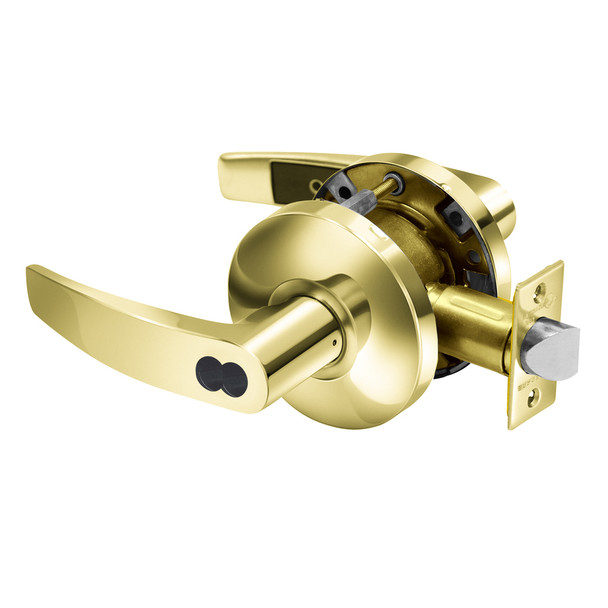

The Sargent 6500 is a standard duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors requiring reliable keyed entry, it provides secure access control for 1-3/8" to 1-3/4" thick doors with universal hand installation and minimal stile requirements.
This lock accepts 2-3/4" or 2-3/8" backsets and includes a brass 6-pin LA keyway cylinder, two nickel silver keys, and your choice of strike styles (600 curved lip standard, 808 ANSI, or 505 full lip). As an authorized Sargent dealer, E.D. Locks offers expert guidance on finish selection, keying options, and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Brand: Sargent
- Model: 2870-65G05 KB3
- Type: Key-In-Lever Cylindrical Lock
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Hand: Universal
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Strikes Available: 600 curved lip, 808 ANSI curved lip, 505 full lip
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) modified
- Minimum Stile: 4-1/2"
