Description
The Sargent 6500 series is a standard-duty key-in-lever lock engineered for interior and passage doors. It exceeds ANSI A156.2 Series 4000 Grade 2 requirements, making it ideal for commercial and institutional buildings where reliable, no-frills security is essential. Universal hand design fits both left and right doors.
This lock fits doors 1-3/8" to 1-3/4" thick with a standard 2-3/4" backset (2-3/8" available). Compatible with ANSI A115.2 bored holes and available in multiple finishes including stainless steel and brass options. As an authorized Sargent dealer, E.D. Locks provides expert product selection and support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and keying for your application.
Specifications
- Brand: Sargent

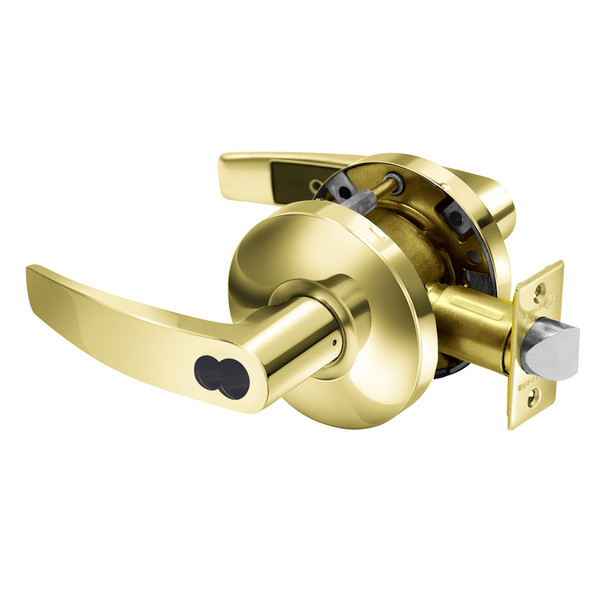

- Model: 2860-65G05 KB 3
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Latch Throw: 1/2" (13mm)
- Front Dimensions: 2-1/4" x 1-1/8" (57mm x 29mm)
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys: Two nickel silver
- Housing: Steel with zinc dichromate finish
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Hand: Universal
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Preparation: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
