Description

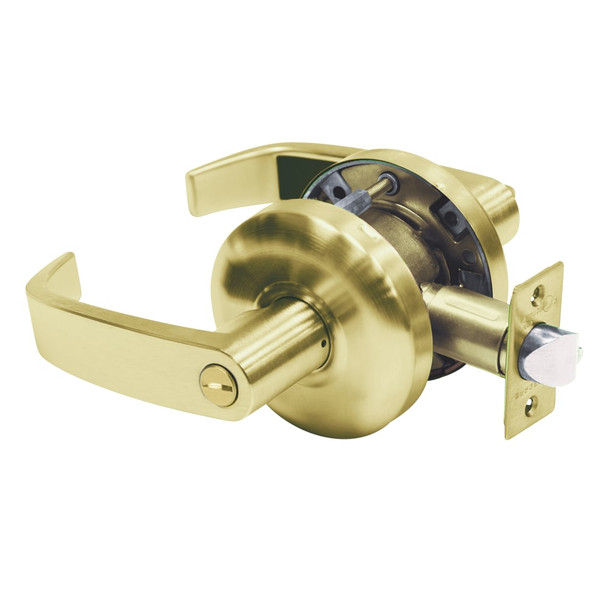

The Sargent 28-65U65 KL 4 is a Grade 2 key-in-lever lock built to ANSI A156.2 Series 4000 standards for reliable commercial and institutional use. Ideal for interior and exterior doors, it delivers dependable access control and security for standard duty applications on doors 1-3/8" to 1-3/4" thick.
This universal-hand lock installs on standard ANSI A115.2 bored prep with a 2-3/4" backset (2-3/8" optional). Supplied with two nickel silver keys and a choice of brass or stainless steel strikes, it combines durability with flexibility. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- ANSI A156.2 Series 4000 Grade 2
- Door thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" standard; 2-3/8" optional
- Cylinder: Brass, 6 pin, LA keyway
- Latch: Brass, 1/2" throw
- Front plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Hand: Universal
- Strike options: 600 curved lip (brass or stainless), 808 ANSI curved lip, 505 full lip
- Finishes: 3, 4, 10, 10B, 26, 26D
- Keys: Two, nickel silver
- Door prep: ANSI A115.2 (161) modified
- Minimum stile: 4-1/2"
