Description

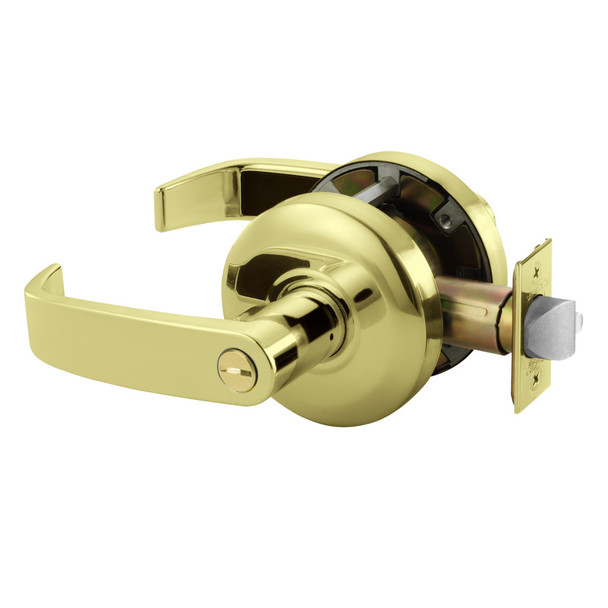

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock that meets ANSI A156.2 Series 4000 Grade 2 requirements. Ideal for commercial and institutional doors, it provides reliable keyed access control for interior and exterior applications on doors 1-3/8" to 1-3/4" thick.
This universal-hand lock installs on ANSI A115.2 standard 161 door prep with a 2-3/4" backset (2-3/8" optional). Comes with two nickel silver keys, brass 1/2" latch, and your choice of finishes including stainless steel and brass strike options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for hand specification, finish selection, and installation guidance.
Specifications
- Brand: Sargent
- Model: 28-65U65 KL 3
- Grade: ANSI A156.2 Series 4000 Grade 2
- Type: Key-In-Lever Cylindrical Lock
- Door Thickness: 1-3/8" to 1-4" (35mm to 44mm)
- Standard Backset: 2-3/4" (70mm)
- Optional Backset: 2-3/8" (60mm)
- Cylinder: Brass, 6 pin, LA keyway
- Latch: Brass, 1/2" throw
- Keys: Two nickel silver
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Hand: Universal
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Strike Options: 600 Curved Lip (standard), 808 ANSI Curved Lip, 505 Full Lip
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2"
