Description

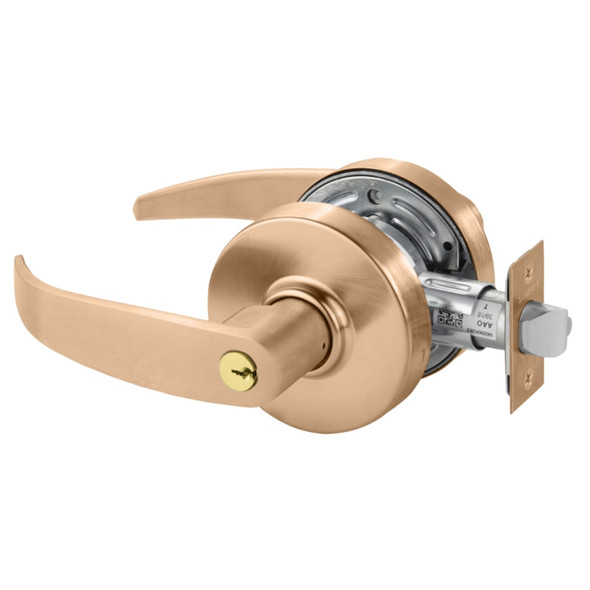

The Sargent 28-7G05 LP 3 is a key-in-lever lock built for standard-duty commercial use in public buildings, medical offices, hotels, motels and government facilities. It exceeds ANSI/BHMA A156.2 cycling and durability standards, delivering reliable security and smooth operation in high-traffic interior and exterior applications.
This lock accommodates 1-3/4" standard or 1-3/8" thick doors with 2-3/4" or 2-3/8" backset options. It features a steel cylindrical housing, wrought brass or stainless steel front and strike, 1/2" brass latch, and 6-pin LA keyway with master key capability. As an authorized Sargent dealer, E.D. Locks provides expert configuration advice and keying support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylindrical Housing: Steel, zinc dichromate finish
- Front: Wrought brass or stainless steel; 2-1/4" x 1-1/8" standard or 2-1/4" x 1" optional
- Strike: Wrought brass or stainless steel; 2-3/4" curved lip standard, 4-7/8" curved lip or 2-1/4" full lip optional
- Latch: Brass, 1/2" (13mm) throw
- Lever Design: Non-handed (B, L, P) or handed (G, Y)
- Cylinder: Brass, 6-pin, LA keyway; master key and grand master key capable
- Keys: Two nickel silver
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Door Prep: ANSI A115.2 standard or 160 prep optional
- Standards: Exceeds ANSI/BHMA A156.2
