Description

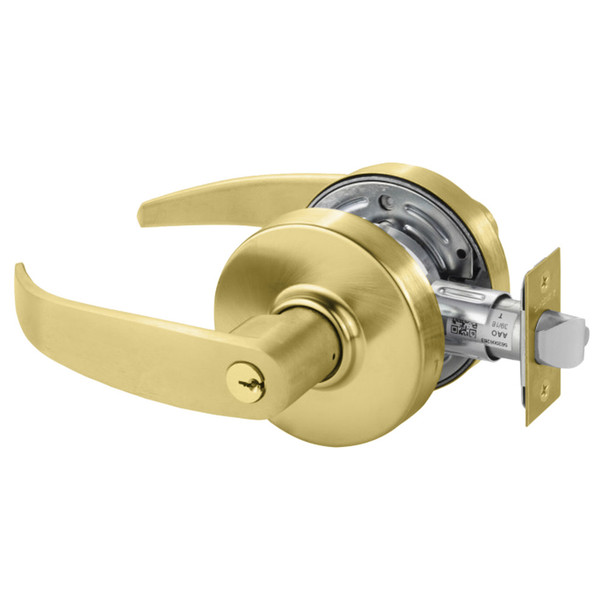

The Sargent 28-7G05 LP is a key-in-lever lock engineered for standard duty commercial use in public buildings, medical offices, hotels and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, delivering reliable security and performance in interior and exterior applications.
Compatible with 1-3/4" and 1-3/8" thick doors, this lock features a brass 6-pin cylinder, 1/2" latch throw, and your choice of lever designs. Includes two nickel silver keys and master keying options. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration, finishes, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Sargent
- Model: 28-7G05 LP
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Latch Throw: 1/2" (13mm)
- Cylinder: Brass, 6-pin, LA keyway, master or grand master key capable
- Front Plate: 2-1/4" x 1-1/8" (standard) or 2-1/4" x 1" (optional)
- Strike: Wrought brass or stainless steel; curved lip or full lip options
- Housing: Steel, zinc dichromate finish
- Lever Designs: Non-handed (B, L, P); Handed (G, Y Coastal Series)
- Keys Included: Two nickel silver
- Available Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Standard: ANSI A115.2 prep; 160 prep available
