Description

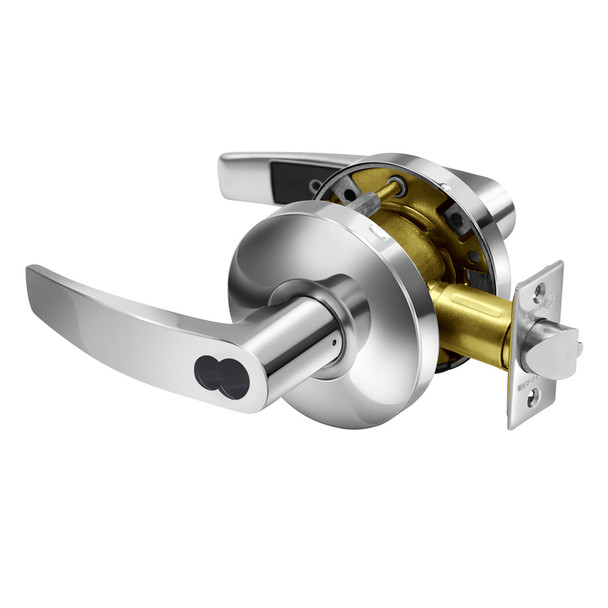

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Grade 2 specifications. Designed for interior and exterior doors 1-3/8" to 1-3/4" thick, it combines steel and brass construction with universal hand operation, making it ideal for commercial buildings, offices, and institutional facilities where reliable keyed access control is required.
This model features a 2-3/4" standard backset, 6-pin brass cylinder with LA keyway, and choice of strike styles (600 Curved Lip standard). Compatible with ANSI A115.2 door prep and minimum 4-1/2" stile width. As an authorized Sargent dealer, E.D. Locks provides expert specification guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for assistance with finish selection, strike options, and custom keying.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylinder: Brass, 6-pin, LA keyway standard
- Latch: Brass, 1/2" throw
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Strike: 600 Curved Lip (brass or stainless steel standard)
- Hand: Universal
- Keys: Two nickel silver
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2"
