Description

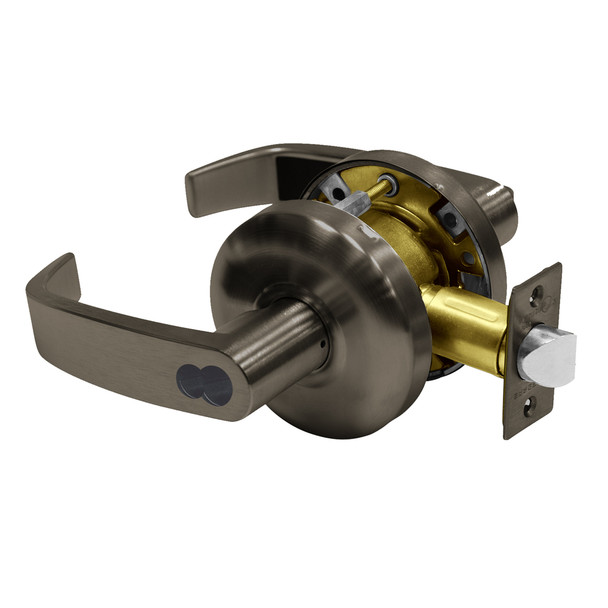

The Sargent 2860-65G37 KL 10B is a Grade 2 key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 standards. Designed for standard-duty commercial and institutional doors, it provides secure keyed access for 1-3/8" to 1-3/4" thick doors. Perfect for offices, schools, and facilities requiring reliable, everyday locking performance.
This lock installs on doors prepped to ANSI A115.2 (161) specifications with a minimum 4-1/2" stile. It comes with universal hand orientation, a brass latch, and your choice of strike options. As an authorized Sargent dealer, E.D. Locks offers expert guidance on keying, backset selection, and finish compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation support.
Specifications
- Brand: Sargent
- Model: 2860-65G37 KL 10B
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" standard, 2-3/8" optional
- Latch Throw: 1/2"
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Finish: 10B (Satin Bronze)
- Hand: Universal
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Door Prep Standard: ANSI A115.2 (161) Modified
- Minimum Stile Width: 4-1/2"
