Description

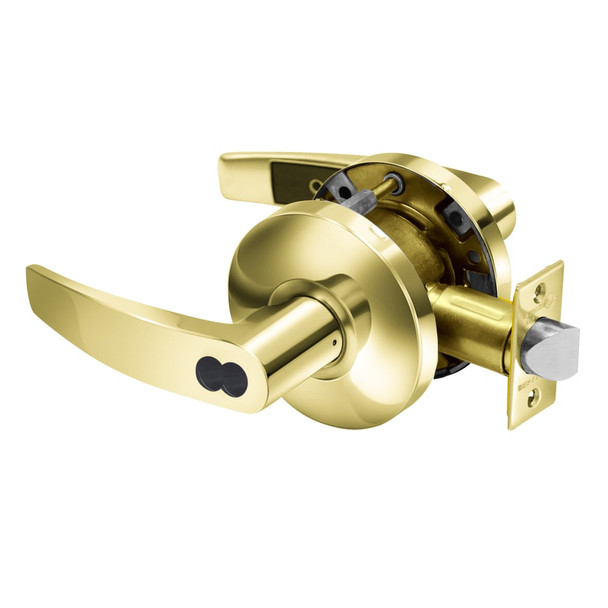

The Sargent 2870-65G37 KB 3 is a standard duty key-in-lever lock built to exceed ANSI A156.2 Series 4000 Grade 2 requirements. Ideal for commercial and institutional applications, this lock delivers reliable security for interior and exterior doors while meeting demanding durability standards.
Compatible with doors 1-3/8" to 1-3/4" thick, this lock features a 2-3/4" standard backset (2-3/8" optional) and universal hand operation for flexible installation. As an authorized Sargent dealer, E.D. Locks provides expert guidance on finish selection, keying, and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation support and to verify your exact specifications.
Specifications
- Brand: Sargent
- Model: 2870-65G37 KB 3
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylinder: Brass, 6 pin, LA keyway
- Latch: Brass, 1/2" throw
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Strike: 600 Curved Lip (brass or stainless steel standard)
- Hand: Universal
- Finish Options: 3, 4, 10, 10B, 26, 26D
- Keys: Two, nickel silver
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2"
