Description

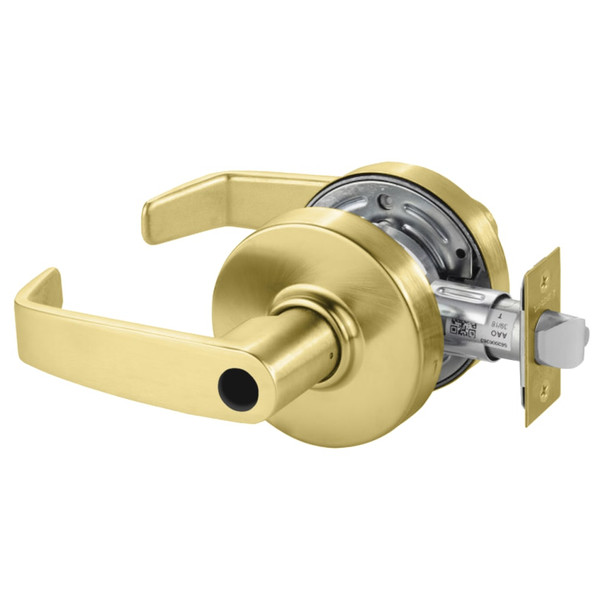

The Sargent 28LC-7G04 is a key-in-lever lock built for standard duty commercial use in public buildings, medical offices, hotels, motels, and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, making it a reliable choice for interior and exterior doors that demand dependable security and performance.
This lock fits 1-3/4" thick doors with a 2-3/4" backset (alternate sizes available). It features a brass latch with 1/2" throw, steel housing, wrought brass or stainless steel front, and comes with two nickel silver keys. The 6-pin LA keyway cylinder can be master keyed or grand master keyed. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on specifications, finishes, and keying options.
Specifications
- Door thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front plate: 2-1/4" x 1-1/8" (57mm x 29mm) standard; 2-1/4" x 1" (57mm x 25mm) optional
- Latch throw: 1/2" (13mm)
- Housing: Steel, zinc dichromate finish
- Front: Wrought brass or stainless steel
- Strike: 2-3/4" curved lip standard; 4-7/8" curved lip and 2-1/4" full lip optional
- Keys: Two, nickel silver
- Cylinder: Brass, 6-pin, LA keyway standard
- Lever designs: Non-handed (B, L, P); Handed (G, Y)
- Finishes available: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Door prep: ANSI A115.2; 160 prep optional
- Standard: ANSI/BHMA A156.2
