Description

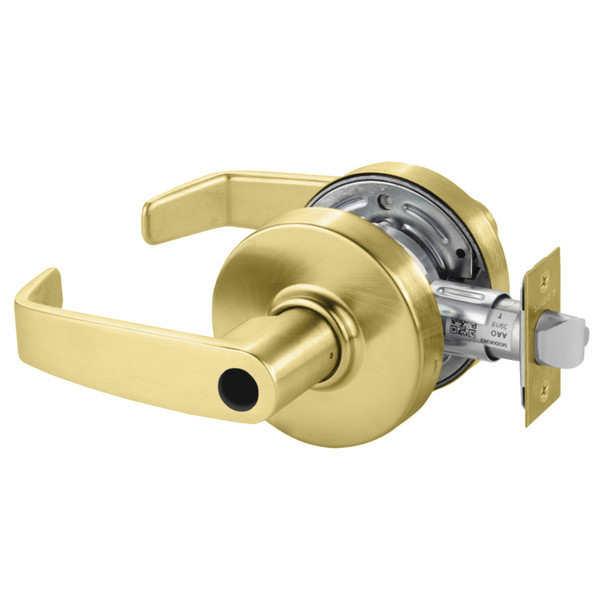

The Sargent 28LC-7G05 LL is a key-in-lever lock built for standard duty commercial use in public buildings, medical offices, hotels, motels, and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, making it ideal for high-traffic interior and exterior doors that demand reliable performance and security.
This lock accommodates 1-3/4" or 1-3/8" thick doors with 2-3/4" or 2-3/8" backset options. Available in multiple finishes, lever designs, and keying configurations including master keying. As an authorized Sargent dealer, E.D. Locks offers expert guidance on specification and installation. Contact sales@edlocks.com or call 1-877-207-6067 for assistance with your project.
Specifications
- Brand: Sargent
- Model: 28LC-7G05 LL
- Lock Type: Key-in-Lever, Cylindrical
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: 2-1/4" x 1-1/8" (57mm x 29mm) standard or 2-1/4" x 1" (57mm x 25mm) optional
- Latch Throw: 1/2" (13mm)
- Cylinder: Brass, 6-pin, LA keyway
- Housing: Steel, zinc dichromate finish
- Strike Options: 2-3/4" Curved Lip standard; 4-7/8" Curved Lip or 2-1/4" Full Lip optional
- Lever Designs: Non-handed (B, L, P); Handed (G, Y Coastal Series)
- Keying: Two keys standard; master keying and grand master keying available
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Door Prep: ANSI A115.2 standard; 160 prep optional
- Standards: Exceeds ANSI/BHMA A156.2
