Description

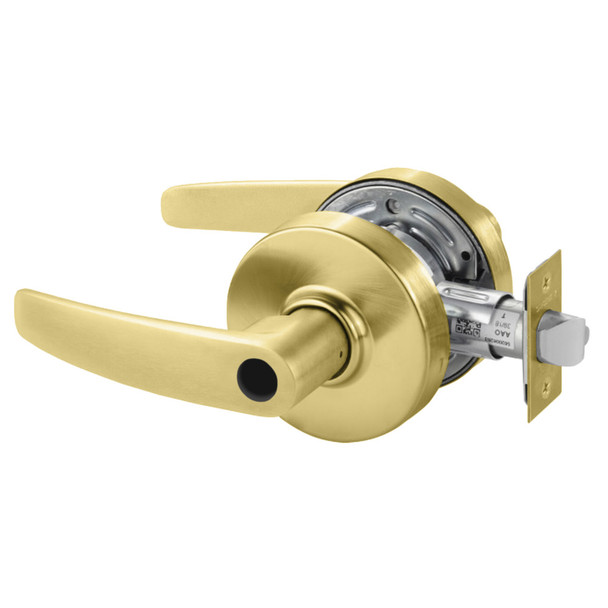

The Sargent 28LC-7G05 LB is a key-in-lever lock engineered for standard duty commercial use in public buildings, medical offices, hotels, motels, and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, delivering reliable security and performance in high-traffic interior and exterior applications.
This lock fits 1-3/4" thick doors with a 2-3/4" backset (alternate configurations available). Compatible with ANSI A115.2 door prep and supplied with two nickel silver keys. The 6-pin brass cylinder supports master keying and grand master keying options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for hand selection, finish options, strike configuration, and expert installation guidance.
Specifications
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylindrical Housing: Steel, zinc dichromate finish
- Front: Wrought brass or stainless steel; 2-1/4" x 1-1/8" standard
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver included
- Strikes: 2-3/4" Curved Lip standard; 4-7/8" Curved Lip and 2-1/4" Full Lip optional
- Lever Designs: B, L, P (non-handed); G, Y Coastal Series (handed)
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Door Prep: ANSI A115.2 standard; 160 Prep optional
- Master Keying: Available
- Standards: Exceeds ANSI/BHMA A156.2
