Description

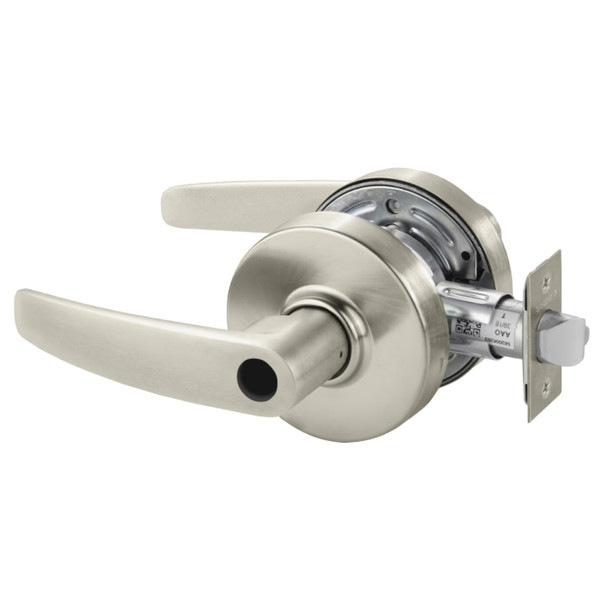

The Sargent 28LC-7G05 is a key-in-lever lock built for standard-duty commercial interior and exterior use in public buildings, medical offices, hotels, and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, offering reliable access control with a 1/2-inch brass latch and 6-pin cylinder keyed to your specifications.
This lock accommodates 1-3/4-inch doors (1-3/8-inch available) with 2-3/4-inch or 2-3/8-inch backset options. Multiple lever designs, finishes, and strike configurations provide flexibility for your installation. As an authorized Sargent dealer, E.D. Locks offers expert guidance on keying, master keying, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for detailed specification selection and support.
Specifications
- Door Thickness: 1-3/4 inches (standard); 1-3/8 inches (optional)
- Backset: 2-3/4 inches (standard); 2-3/8 inches (optional)
- Latch Throw: 1/2 inch brass
- Cylinder: Brass, 6-pin, LA keyway standard
- Front Plate: Wrought brass or stainless steel; 2-1/4 inches x 1-1/8 inches (standard) or 2-1/4 inches x 1 inch (optional)
- Strike: Wrought brass or stainless steel; 2-3/4-inch curved lip (standard), 4-7/8-inch curved lip, or 2-1/4-inch full lip (optional)
- Housing: Steel, zinc dichromate finish
- Lever Options: Non-handed B, L, P designs; Handed G and Y Coastal Series designs
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Keys: Two nickel silver keys; master key and grand master key capable
- Door Prep: ANSI A115.2 standard or 160 prep (optional)
