Description

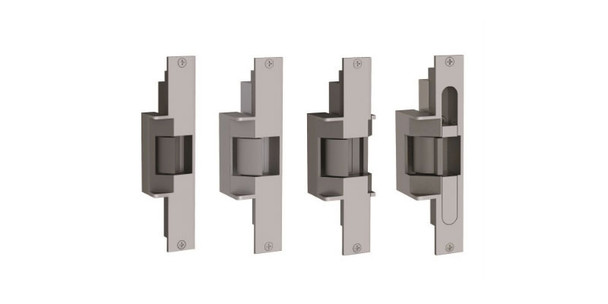

The Folger Adam 310 Series is a heavy-duty, 3-hour fire-rated electric strike built entirely of stainless steel for extreme abuse environments. Ideal for high-security institutional and commercial applications, it solves the need for reliable access control in fire-rated door assemblies without compromising safety or durability.
This strike is UL 10C and NFPA-252 compliant for single and double fire doors, and meets ANSI/BHMA Grade 1 standards. The 24D model includes latchbolt and locking cam monitoring with an auxiliary switch. Installation requires standard strike preparation; our authorized dealer team at sales@edlocks.com or 1-877-207-6067 can confirm compatibility with your frame and provide expert guidance.
Specifications
- UL 10C Fire-Rated, 3 hour (single and double door, fail secure)
- UL 1034 Burglary-Resistant Listed
- ANSI/BHMA A156.31 Grade 1
- CAN4-S104 (ULC-S104) Compliant
- NFPA-252 and ASTM-E152 Fire Door Conformant
- All Stainless Steel Construction
- Static Strength: 1,500 lbs
- Dynamic Strength: 70 ft-lbs
- Endurance Rating: 500,000 Cycles
- Power: 0.51 Amps @ 12VDC or 0.25 Amps @ 24VDC Continuous Duty
- Keeper Depth: 1/2 inch (310-2)
- Horizontally Adjustable Keeper
- Non-Handed, Fail Secure (Standard)
- Plug-In Connector
- LCBMA: Latchbolt & Locking Cam Monitor with Auxiliary Switch
- Five Year Limited Warranty
- RoHS Compliant
