Description

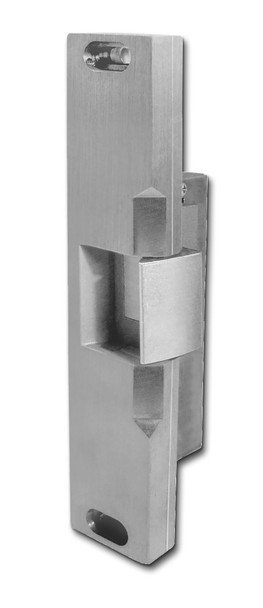

The Folger Adam 310 Series is a heavy-duty, 3-hour fire-rated electric strike engineered for extreme industrial applications. Built entirely of stainless steel, it resists corrosion and abuse in high-security environments where standard strikes fail. UL 10C and UL 1034 burglary-resistant listed, it meets ANSI/BHMA Grade 1 standards and NFPA-252 fire door compliance for institutional and commercial properties.
This fail-secure model accommodates standard door frames with integrated shims adjusting faceplate thickness from 1/2" to 3/4". The LCBMA configuration includes latchbolt and locking cam monitoring with auxiliary switch output. For expert guidance on frame compatibility, voltage selection (12VDC or 24VDC), and installation, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- UL 10C, 3-hour fire-rated (fail secure only)
- UL 1034 burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 and ASTM-E152 fire door conformant
- CAN4-S104 (ULC-S104) fire door conformant
- 0.51 Amps @ 12VDC continuous duty
- 0.25 Amps @ 24VDC continuous duty
- Static strength: 1,500 lbs
- Dynamic strength: 70 ft-lbs
- Endurance rating: 500,000 cycles
- Integrated shim: 1/2" to 3/4" faceplate thickness
- Faceplate width: 1-3/4"
- Non-handed, fail secure standard
- Stainless steel construction
- Five-year limited warranty
- Plug-in connector
