Description

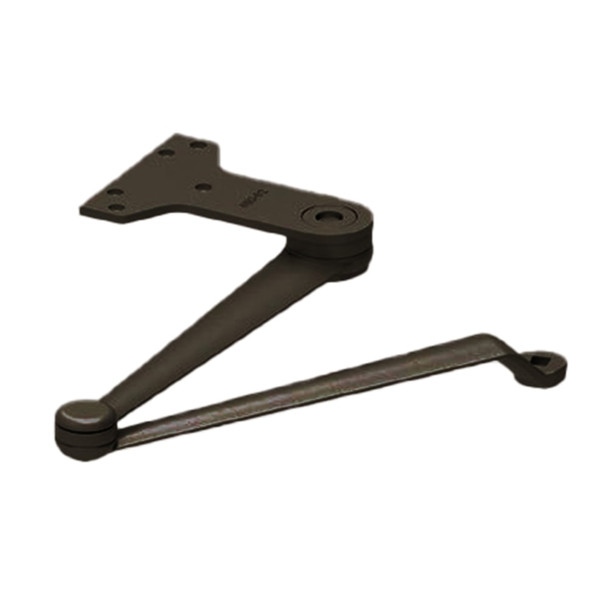

The LCN 4030-3049EDA is an extra-duty hold-open door closer arm designed for commercial and institutional facilities requiring reliable automatic door closing. This right-hand arm solves the need for ADA-compliant, accessible door control on buildings with doors up to 36 inches wide on exterior applications and 48 inches on interior doors.
Compatible with the LCN 4030 series non-sized cylinder, this arm mounts on the hinge side or top jamb in parallel configuration for either right or left swinging doors. The standard dark bronze finish resists corrosion, with optional plated finishes and SRI primer available. As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finish selection and installation. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Brand: LCN
- Model: 4030-3049EDA
- Orientation: Right Hand
- Finish: Dark Bronze
- Arm Type: Extra Duty Hold Open
- Maximum Door Width: 36 inches exterior, 48 inches interior
- Mounting: Hinge side, top jamb, or parallel arm
- Cylinder: Non-sized (1-4) 4031
- Standards: UL/cUL listed, ANSI A156.4 Grade One
- Includes: Forged regular arm, metal cover, wood/self-tapping machine screw pack
- Optional Finishes: Custom powder coat, plated finish, SRI primer for corrosive environments
