Description

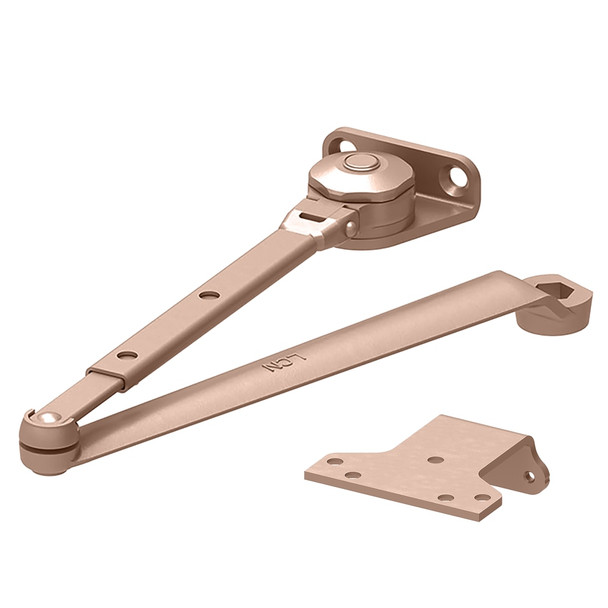

The LCN 4040XP-3049/PA is a heavy-duty door closer arm engineered for institutional and high-traffic environments. It features 44% increased bearing load capacity, the strongest pinion at 3/4" journal diameter, and an innovative V-shield seal with 20% longer life. Built from cast iron, forged steel, and double heat-treated steel components, this closer delivers unmatched durability and reliability for demanding applications.
This non-handed closer mounts on the hinge side, top jamb, or parallel arm configuration for either right or left swinging doors. The non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed, it meets ADA requirements and ANSI A156.4 Grade One standards. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish selection, and installation guidance from an authorized LCN dealer.
Specifications
- Brand: LCN
- Model: 4040XP-3049/PA
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Construction: Cast Iron, Forged Steel, Double Heat-Treated Steel Pinion
- Seal: V-shield with 20% longer life
- Fluid: All Weather
- Handed: Non-Handed
- Mounting: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Finish Options: Standard or custom powder coat, optional plated finish, optional SRI primer for corrosive environments
