Description

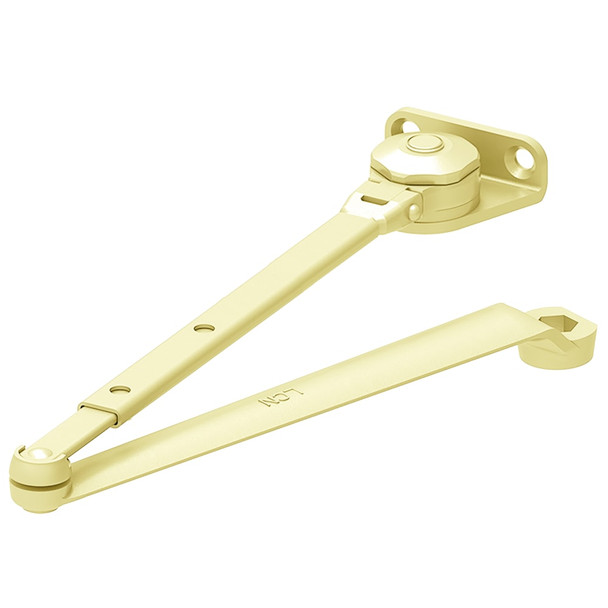

The LCN 4040XP-3049L is a heavy-duty institutional door closer arm built for high-traffic, demanding environments. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and LCN's V-shield seal technology for 20% longer life. Non-handed design works on right or left swinging doors with cast iron and double heat-treated steel construction.
This closer mounts on the hinge side, top jamb, or with a parallel arm bracket, and adjusts for interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed to ANSI A156.4 Grade One, it meets ADA requirements and compatible with all 4040 accessories. As an authorized LCN dealer, E.D. Locks offers expert guidance on finish options, installation, and keying. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4040XP-3049L
- Finish: US3
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Adjustment: Up to 5'0"
- Exterior Door Adjustment: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Handed: Non-handed
- Material: Cast iron arm, forged steel, double heat-treated steel pinion
- Fluid Type: All weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer for corrosive conditions
