Description

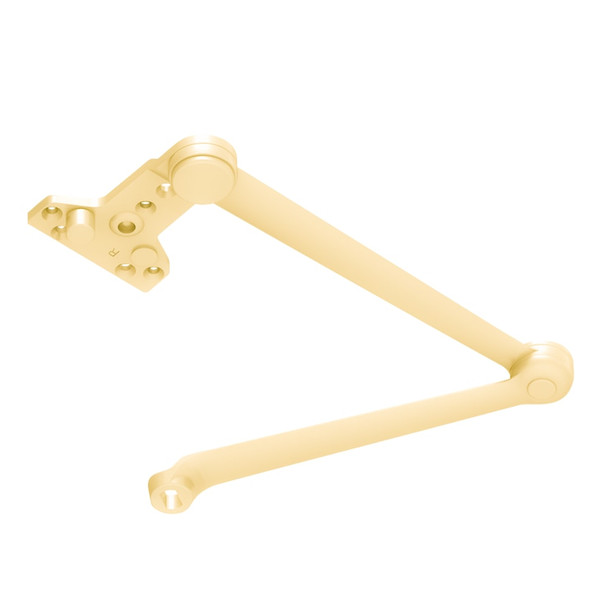

The LCN 4040XP-3077CNS is a heavy-duty institutional door closer arm engineered for high-traffic, demanding environments. Built with 44% increased bearing load capacity, a 3/4" diameter pinion journal, and reinforced pinion teeth, this closer delivers superior durability and reliability for facilities requiring maximum uptime and performance.
This non-handed closer installs on hinge side, top jamb, or parallel arm configuration and accommodates interior doors to 5'0" and exterior doors to 4'0". The cylinder is adjustable for ADA compliance. As an authorized LCN dealer, E.D. Locks provides expert guidance on sizing, finish options (standard powder coat, plated finishes, or SRI primer for corrosive environments), and installation. Contact our specialists at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4040XP-3077CNS
- Finish: US3
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Sealing: V-shield seal with 20% extended life
- Features: All-weather fluid, non-handed, LCN Fast power adjust, fast and accurate installation
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Installation Options: Hinge side, top jamb, parallel arm
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer
