Description

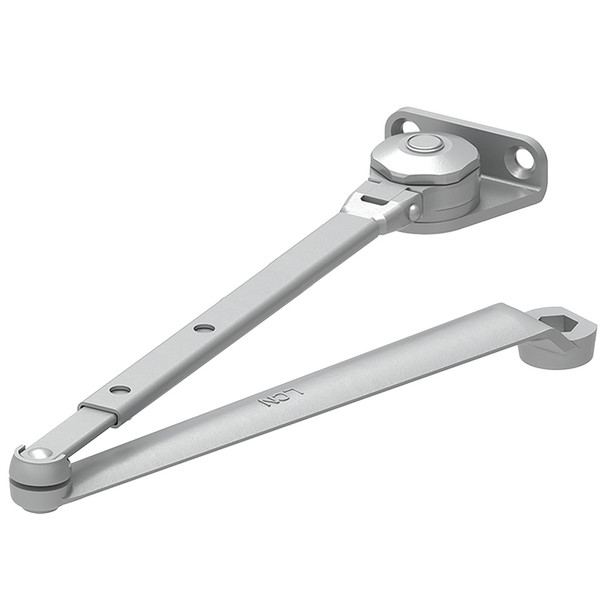

The LCN 4040XP is a heavy-duty institutional door closer arm engineered for high-traffic environments demanding maximum durability and reliability. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a reinforced 5/8" wide bearing. The V-shield seal delivers 20% longer life, making it ideal for schools, hospitals, and commercial facilities where performance cannot fail.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration for either swing direction on interior doors to 5'0" and exterior doors to 4'0". It is UL and cUL listed, ANSI A156.4 Grade One certified, and compatible with all 4040 accessories. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for proper sizing, finish selection (standard or optional powder coat, plated, or SRI primer), and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-3049L
- Finish: US26D (Satin Chrome)
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Seal: V-shield with 20% extended life
- Construction: Cast iron body, forged steel arm, double heat treated steel pinion
- Fluid Type: All weather
- Hand: Non-handed
- Mount Options: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Features: LCN Fast power adjust, fast accurate installation
- Finish Options: Standard or optional custom powder coat, optional plated finish on metal cover/arm/fasteners, optional SRI primer for corrosive conditions
