Description

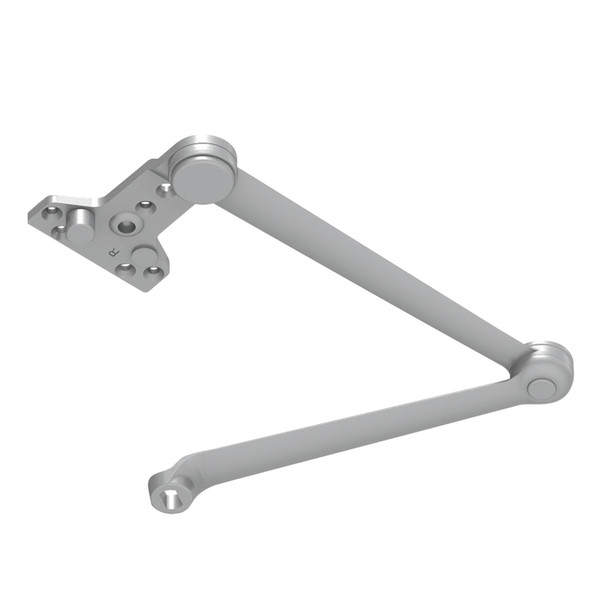

The LCN 4040XP-3077CNS is a heavy-duty door closer arm engineered for institutional and high-traffic facilities. It delivers 44% increased bearing load capacity, the strongest pinion design at 3/4" journal diameter, and an innovative V-shield seal with 20% longer life. Built from cast iron, forged steel, and double heat-treated steel, it handles demanding applications where durability is non-negotiable.
This non-handed closer mounts on hinge side, top jamb, or parallel arm positions on either right or left swinging doors. The non-sized, adjustable cylinder works on interior doors to 5'0" and exterior doors to 4'0", and meets ADA requirements. As an authorized LCN dealer, E.D. Locks provides expert guidance on finish options (standard powder coat, plated, or SRI primer for corrosive environments) and installation. Contact sales@edlocks.com or 1-877-207-6067 for expert assistance.
Specifications
- Brand: LCN
- Model: 4040XP-3077CNS
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Material: Cast Iron, Forged Steel, Double Heat Treated Steel Pinion
- Non-Handed Design
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting Options: Hinge side, top jamb, or parallel arm
- Finish Options: Standard powder coat, plated, or SRI primer
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Fluid: All Weather
