Description

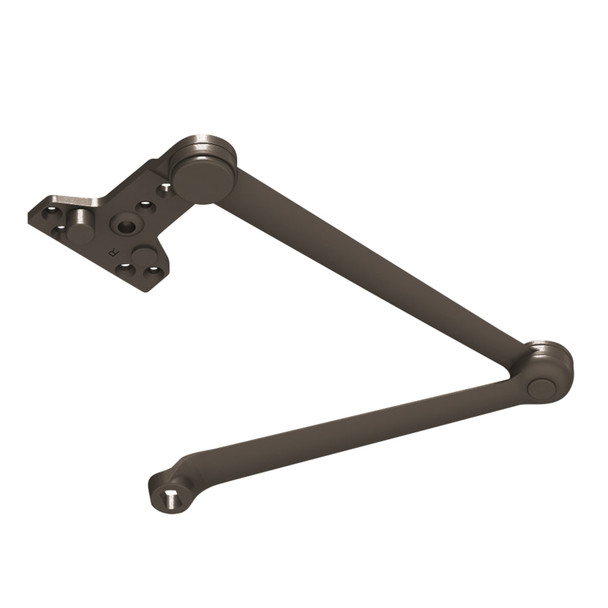

The LCN 4040XP is a heavy-duty door closer arm engineered for institutional and high-traffic commercial applications. It features 44% increased bearing load capacity, the strongest pinion design, and LCN's V-shield seal technology for extended durability. Ideal for facilities demanding reliable, long-lasting performance in demanding environments.
This non-handed closer accommodates interior doors to 5'0" and exterior doors to 4'0", mounting on hinge side, top jamb, or parallel arm configuration. It is UL and cUL listed, ANSI A156.4 grade one certified, and compatible with all 4040 accessories. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options, installation, and ADA compliance solutions.
Specifications
- Model: 4040XP-3077CNS
- Finish: US11 (satin stainless steel)
- Bearing load capacity: 44% increase over standard models
- Pinion journal diameter: 3/4 inch
- Bearing width: 5/8 inch
- Material: Cast iron arm, forged steel components, double heat-treated steel pinion
- Fluid: All-weather
- Handed: Non-handed
- Interior door capacity: up to 5'0"
- Exterior door capacity: up to 4'0"
- Mount options: Hinge side, top jamb, parallel arm (with PA bracket)
- Certifications: UL and cUL listed, ANSI Standard A156.4 grade one
- Seal technology: V-shield with 20% longer life
- Optional finishes: Custom powder coat, plated finish on metal cover and arm, SRI primer for corrosive environments
