Description

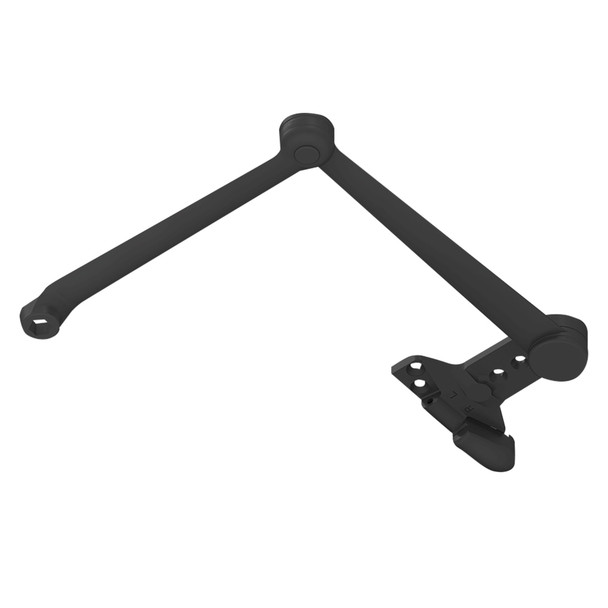

The LCN 4040XP is a heavy-duty door closer arm engineered for institutional and high-traffic applications. It features 44% increased bearing load capacity, the strongest pinion at 3/4" journal diameter, and a durable V-shield seal with 20% longer life. Cast iron and double heat-treated steel construction delivers reliable performance in demanding environments.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration for right or left swinging doors up to 5'0" interior and 4'0" exterior. It meets ADA requirements and is UL/cUL listed. Call our authorized dealer experts at 1-877-207-6067 or email sales@edlocks.com for sizing assistance, finish options, and corrosion-resistant primer availability.
Specifications
- Model: 4040XP-3077SCNS
- Finish: Black powder coat
- Bearing load capacity: 44% increase over standard
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All weather
- Non-handed: Universal for right or left swing
- Mount options: Hinge side, top jamb, or parallel arm with PA bracket
- Interior door capacity: Up to 5'0"
- Exterior door capacity: Up to 4'0"
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Features: LCN Fast Power Adjust, fast and accurate installation, V-shield seal
- Compatible: All 4040 accessories
