Description

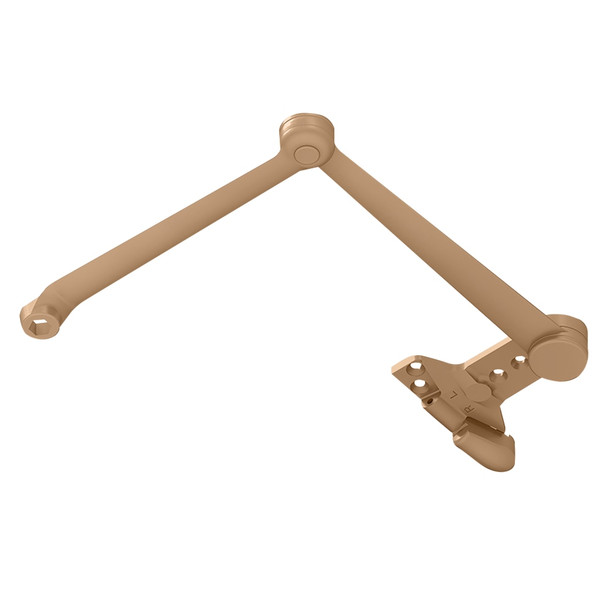

The LCN 4040XP is a heavy-duty institutional door closer arm engineered for high-traffic applications where durability matters most. With 44% increased bearing load capacity, a 3/4" pinion journal, and reinforced steel construction, it solves performance problems in demanding commercial and institutional settings where standard closers fail.
This non-handed closer mounts on hinge side, top jamb, or with parallel arm bracket on either right or left swinging doors, adjustable for interior doors to 5'0" and exterior to 4'0". UL and cUL listed under ANSI A156.4 grade one, it features the V-shield seal and all-weather fluid. As an authorized LCN dealer, E.D. Locks provides expert sizing, finish selection (standard/custom powder coat, plated, or SRI primer for corrosive environments), and free installation support at 1-877-207-6067 or sales@edlocks.com.
Specifications
- Brand: LCN
- Model: 4040XP-3077SCNS
- Finish: US10 (Standard); optional powder coat, plated, or SRI primer
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Handed: Non-Handed
- Installation: Hinge side, top jamb, or parallel arm mount
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Features: LCN Fast Power Adjust, V-shield seal (20% longer life), Fast and Accurate Installation
- Accessories: Compatible with all 4040 accessories
