Description

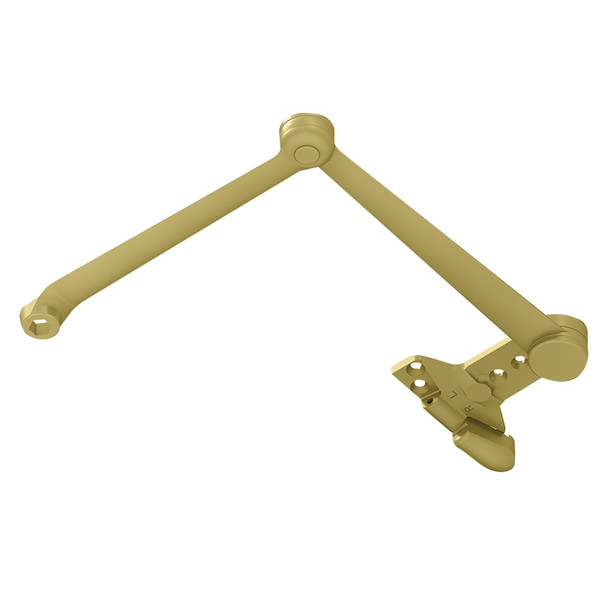

The LCN 4040XP is a heavy-duty commercial door closer arm engineered for high-traffic institutional environments. With 44% increased bearing load capacity, a 3/4" journal pinion, and V-shield seals rated for 20% longer life, it delivers maximum durability and reliability where demand is relentless. This non-handed closer solves the challenge of maintaining consistent door control across demanding applications.
Compatible with interior doors to 5'0" and exterior doors to 4'0", the 4040XP mounts on hinge side, top jamb, or parallel arm configurations for flexible installation. UL and cUL listed and certified to ANSI A156.4 grade one, it features adjustable power, fast installation, and optional finishes including powder coat and plated options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on specification, finish selection, and sizing.
Specifications
- Brand: LCN
- Model: 4040XP-3077SCNS
- Finish: US4 (Satin Chrome)
- Non-Handed: Fits right or left swinging doors
- Bearing Load Capacity: 44% increase over standard models
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal: V-shield with 20% extended life
- Construction: Cast iron forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm (with PA bracket)
- Certifications: UL and cUL listed, ANSI A156.4 grade one
- Power Adjust: LCN Fast Power Adjust
- Installation: Fast and accurate
- Optional Finishes: Custom powder coat, plated metal cover and fasteners, SRI primer for corrosive environments
